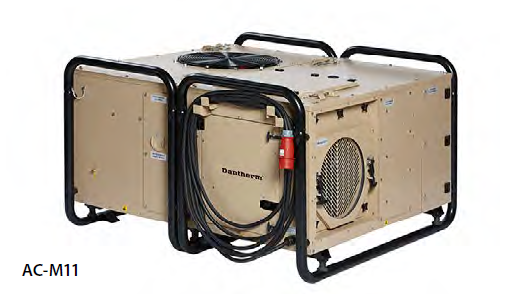

AIR CONDITIONER (Dantherm AC-M11) 400V 50Hz, 17.5kW, sand

Form

Transportable and movable air conditioner that can be used for both tents or permanent structures.

Technical specifications:

air flow: 1700 m³/h
sound level @ 1m: 55 dB(A)
protection class: IPX5
refrigerant: R134a
nominal cooling capacity: 11/ kW/ 38000 BTU
heating capacity (optional): 8 kW
power supply: 400V / 3ph / 50Hz
max. running current, cooling/heating: 15 / 16A
locked rotor amperage (LRA): 65.5 A
max. power consumption cooling/heating: 4,200 / 8,800W
color: white
one G3 filter is included with the unit, a second filter (F7) can be added for additional air filtering
operating range, cooling: 20 to 60°C
operating range, heating: -32 to 20°C
air duct connection: 315 mm diameter
product size (h x l x w): 735 x 1140 x 1140mm
weight (without accessories): 182 kg

Per piece.

This specific model works 50 Hz frequency.

Standard setup includes:

Consummables include:

The unit should be placed outside the tent, close to the sleeves, preferably in the shade and without direct air restrictions.

The unit can also be used for permanent structures.

Cooling and/or heating of tents or permanent structures while ensuring filtered air supply as well as air renewal.
