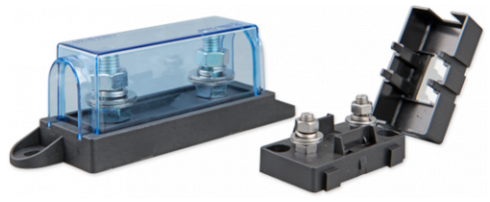

FUSE HOLDER, panel mounting, for ANL bolt-on, 80V DC, M8

Form

A universal holder for ANL 80V DC fuses:

  • voltage rating: 80V DC
  • current rating: 600A
  • distance between holes: 60 mm
  • diameter of holes: 11 mm / M8 bolt
  • comes with a transparant cover

Per piece.


Fit

Suitable for any ANL fuse with a 11mm or M8 bolt opening.Panel mount design.

Function

This fuse holder is a device which fits and is used to hold an ANL 80V DC fuse in place. When a fuse blows, the fuse holder is designed to disconnect the circuit and prevent current from flowing.
