BRAZING ROD, Ag 15% P 5% Cu 80%, Ø2x500mm, 1kg
NST
CCLITOOLY152
Valid Article
HS Code:
831190
Last Updated on:
13/12/2024, 22:07:25
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
BRAZING ROD, Ag 15% P 5% Cu 80%, Ø2x500mm, 1kg
Form

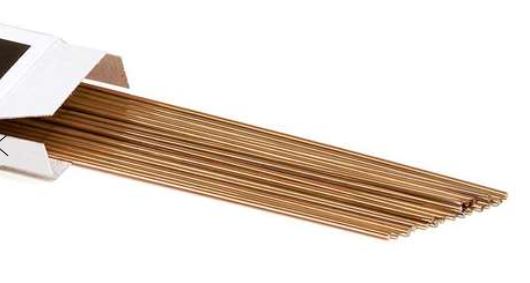

Brazing rods consisting of, 15% silver, 5% phosphorus and 80% copper:
- solidus/Liquidus: 645°C / 800°C
- diameter: Ø2 mm
- lenght: of 500 mm
- 1 pack with several sticks with a combined weight of 1 kg, usually around 28 sticks per pack.
Per pack.
Fit
The brazing rod needs to be applied with help of a torch.
Be aware, not suitable for soldering steel or ferrous alloys.
Function
Brazing rods for welding copper-copper compoundsand copper-brass joints and tubes in HVAC-installations.
These low silver welding rods are suitable for brazing copper-copper and copper-brass connections (not for steel or ferrous alloys). For copper-brass connections, a flux agent (powder or paste) must be added. For a wide spectrum of metals (copper, bronze, brass, steel), the welding rods high silver content are appropriate. For connections with steel or stainless steel, a flux agent (powder or paste) must be added.
- WARNING: PROTECT yourself and others when welding.
- FUMES AND GASES can be hazardous to your health.
- HEAT RAYS, (infrared radiation) from flame or hot metal can injure eyes.
- Before use, read and understand the manufacturer's instructions.
- Keep head out of fumes.
- Use enough ventilation, exhaust at the flame, or heat source, to keep fumes and gases from your breathing zone and the general area.
- Wear correct eye, ear, and body protection.
