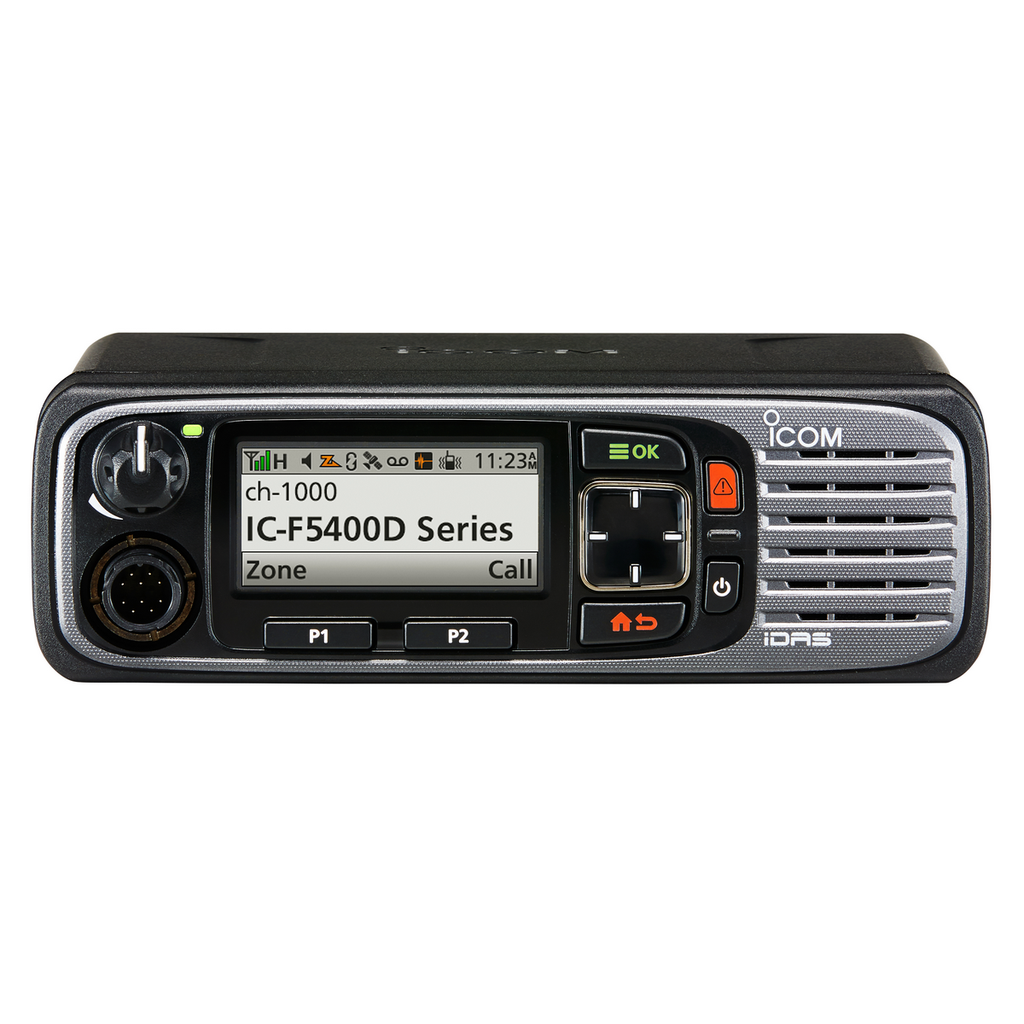

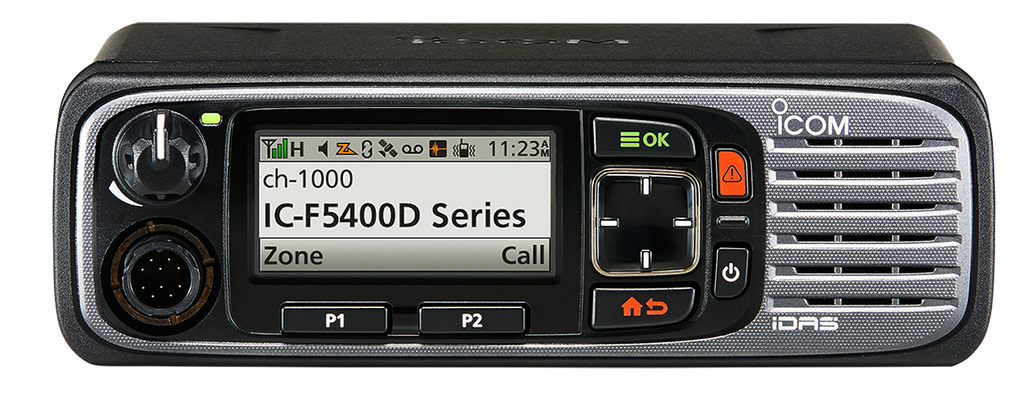

VHF TRANSCEIVER (Icom IC-F5400DP#51) 50W 136-174MHz

Form

Specifications:

  • Firmware: Icom Japan
  • Supplied with 12V power cable
  • Supplied with Icom HM-220 microphone
  • With CTCSS option (audio subtone)
  • Frequency range: 136 - 174 MHz
  • Programmable channels: 1024 channels / 128 zones
  • Programmable channel increment: 12.5/15/25/30 kHz
  • Duplex mode, programmable frequency interval
  • Runs on 12 V DC battery
  • Consumption:
    • Tx: 14 A
    • Rx: 1.2 A
    • Standby: 0.3 A
  • Power output: 50 W maximum
  • Antenna impedance: 50 ohms, unbalanced

Fit

This is not the standard OCB VHF base (the standard is the Icom IC-F5062). The Icom IC-5400DP should be ordered when it is required to connect the VHF network with the Iridium SAT100 satellite network through the use of a dedicated gateway.

Function

Wide-band VHF radio, base station and mobile, intended for short-distance voice communications.

Will allow GPS identification of user.
