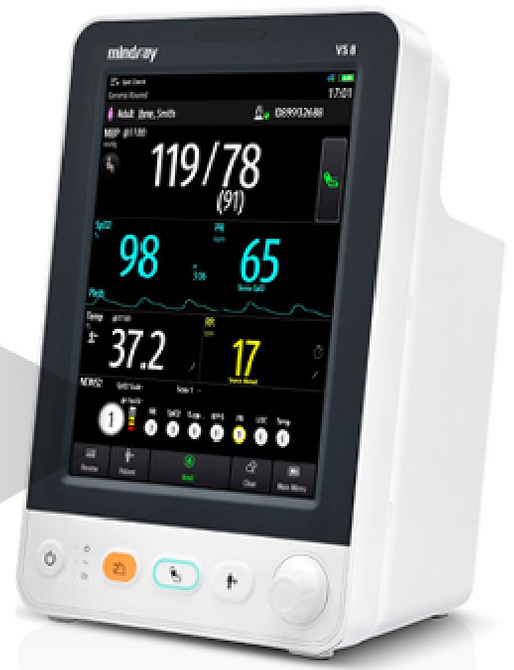

MONITOR, vital signs (Mindray VS8)

Definition

A device designed for spot check and recording of vital signs and routine observations of one patient: temperature, heart rate, oxygen saturation and blood pressure (diastolic and systolic) in a noninvasive manner, with adjustable alarms for these parameters.

The apparatus is used for occasional or periodic readings of vital signs in healthcare settings such as: emergency departments, general or specialized inpatient wards.

The apparatus is used for occasional or periodic readings of vital signs and/or continuous monitoring of SpO2, HR, and intermittent automatic BP in healthcare settings such as: emergency departments, general or specialized inpatient wards, intensive care unit." It is important for our Ops colleagues to know that this is the device we recommend for basic ICU-level 1 for continuous monitoring.

It is not only a a spot-check device. The device will the the MSF standard device we recommended for the basic critical care/ICU- level 1. The more advanced ePM10 or ePM12 multi-parameter monitor are meant for intermediate and advanced critical care (level 2 and 3), as they have more implications financially and training perspective.

Specifications

  • Non Invasive Blood Pressure (oscillometry NIBP)
    • modes: manual, auto, STAT, sequence, BP averaging
    • parameters: systolic, diastolic, mean
    • measuring time: <15 sec typical, max 180 sec
    • range: 10-290 +/-5 mmHg
  • Pulse Rate (PR)
    • 20-300 +/- 3 bpm (from Nellcor)
    • 30-300 bpm +/- 3% (from NIBP)
    • 1 sec refresh rate
  • Oxygen Saturation (SpO2)
    • range: 0-100% (Nellcor)
    • accuracy (@>70%): +/- 2% adult, 3% neonate
    • 1 sec refresh rate
  • Other Parameters
    • 30 customizable manual input fields
  • Data History
    • up to 5000 spot checks;
    • up to 240 hrs (@ 30 sec interval) in continuous mode
    • up to 200 events (parameter or technical alarms)
  • Clincal Assistive Application
    • Early Warning Score (mews, news, pews)
    • GCS, pain score, targeted goal views
    • Orthostatic BP measurement
  • Alarms
    • prompting tone
    • 3 different tones/levels for alerts
    • Red/Yellow/Cyan LED levels
    • alarm message displayed
Some restricted information has been hidden. Sign in to see this information

Quality standards

  • EN IEC 80601-2-49, 2019, edition 1, Medical electrical equipment -- Part 2-49: Particular requirements for the basic safety and essential performance of multifunction patient monitoring equipment
  • ISO 80601-2-55, 2018, edition 2, Medical electrical equipment - Part 2-55: Particular requirements for the basic safety and essential performance of respiratory gas monitors
  • ISO 80601-2-56, 2017, edition 2, +A1 2018 Medical electrical equipment - Part 2-56: Particular requirements for basic safety and essential performance of clinical thermometers for body temperature measurement
  • ISO 80601-2-61, 2017, edition 2, Medical electrical equipment - Part 2-61: Particular requirements for basic safety and essential performance of pulse oximeter equipment
  • EN 62304, 2006, +A1:2015 Medical Device Software - Software Lifecycle Process
  • IEC 62366-1, 2015, +AMD1:2020 MD Application of usability engineering to medical devices

Components

EEMDMONP22- and EEMDMONE2200 are composed of

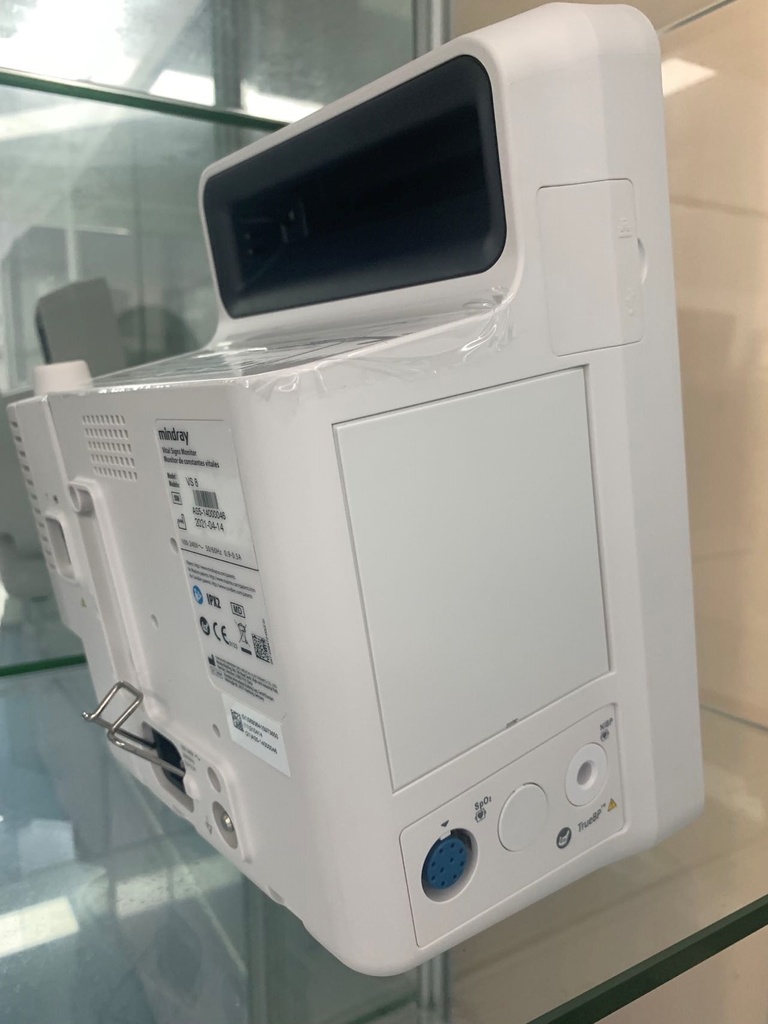

  • 1 x Main unit with 8" HD Non-touch screen (with knob) DJ10-0001-313
  • 1 x English language software DJ10-0005-002
  • 1 x EEMDMONS2201 Power cord - EU (European) DJ10-0002-002
  • 1 x EEMDMONS2202 High Capacity Battery DJ10-0021-030
  • 1 x built in NIBP with TrueBP technology DJ10-1003-001

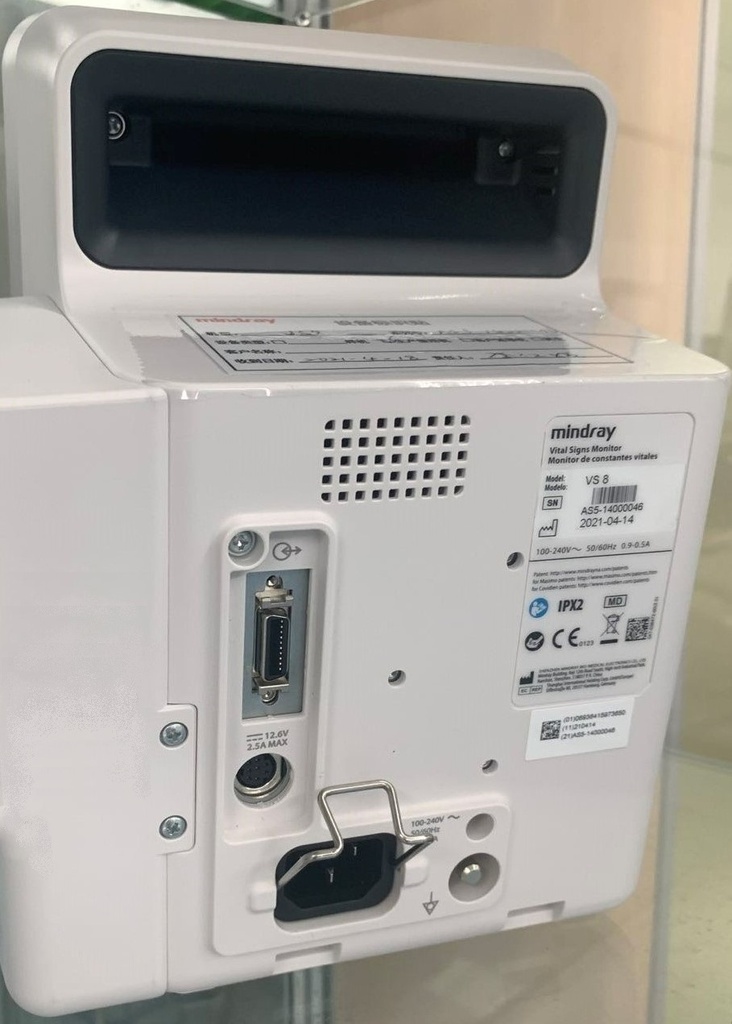

  • 1 x Multifunctional Connectors (Nurse Call/DIAP/Battery port) DJ10-1021-008
  • 1 x built in Nellcor SpO2 DJ10-1002-003

Technical specifications

  • Hardware
    • 8" color TFT LCD (1024x768 pixels)
    • IPX2 ingress protection
    • 45-85 dB alarm tones
    • 1x equipotential grounding terminal
    • class 1 protection: type CF (SpO2, NIBP, TrueTemp)
    • CISPR11 RF: Group 1 Class A
    • 0.5-5V 10mA Nurse Call signal
    • optional bar code scanner
    • optional thermal printer (25mm/s)
  • Power
    • 100-240V +/-10%, 50-60Hz +/- 3Hz
    • 0.5-0.9 A; T2AL-250V fuse
    • 10.95VDC, 5000mAh Li-ion battery (>8 hrs runtime)
    • Automatic switch between battery and mains powered mode when recharging or in mains power failure
    • Shutdown delay of at least 20 min after low battery alarm
  • Environmental Requirements
    • 0-40 C operating temperature
    • 15-95% non-condensing humidity
    • 427-787 mmHg (57-105 kPa) barometric pressure
  • Communication Interface
    • Bluetooth 5
    • WiFi IEEE 802.11 a/b/g/n/ac
    • 1x RJ45
    • 2x USB 2.0
    • 1x multi functions connector
    • optional HL7, eGateway, VistaIsLink data output

Dimensions

H x W x D : 252 x 170 x 150 mm

Weight: 2.5 kg with battery

Transport Dangerous Goods

UN2800: special provisions in air (A67) and sea (238) that allow us to send the product as not subject to regulation

Supplied with the Article

Only EEMDMONP22- package is supplied with

  • 1 x EEMDMONA2202 Rolling Stand (Standard) + comment Quick lock (compact with all existing models under 12" inch screen and VS) - 045-004267-00
  • 1 x EEMDMONA1601 SpO2 Connection cable, 7-pins - 0010-20-42710
  • EEMDMONA2315 SpO2 SENSOR neo, adu/ped reusable 518B
  • EEMDMONA2314 SpO2 SENSOR adu/ped ear-clip reusable 513A
  • EEMDMONA2313 SpO2 SENSOR child finger-tip reusable 512G
  • EEMDMONA2312 SpO2 SENSOR adu finger-tip reusable 512E
  • 2 x EEMDDEFA205 NIBP Tubing, Adu/Ped/Infant, with air plug connectors (3m) - 6200-30-09688
  • 3 x EEMDMONA2301 CM1300 reusable cuff, neonate 7-13cm with connector - 040-000968-00
  • 5 x EEMDMONA2302 CM1301 resuable cuff, Infant, 10-19 cm, with connector - 040-000973-00
  • 5 x EEMDMONA2304 CM1303 resuable cuff, Adu, 25-35cm, with connector - 040-000983-00
  • 5 x EEMDMONA2305 CM1304 resuable cuff, Large Adu, 33-47cm, with connector - 040-000988-00
  • 3 x EEMDMONA2306 resuable cuff, adult thigh 46-66cm, with connector - 040-000993-00

To be Ordered Separately

For EEMDMONE22-

  • EEMDMONA2202 Rolling Stand (Standard) + comment Quick lock (compact with all existing models under 12" inch screen and VS) - 045-004267-00
  • EEMDMONA2301 CM1300 reusable cuff, neonate 7-13cm with connector - 040-000968-00
  • EEMDMONA2302 CM1301 resuable cuff, Infant, 10-19 cm, with connector - 040-000973-00
  • EEMDMONA2304 CM1303 resuable cuff, Adu, 25-35cm,with connector - 040-000983-00
  • EEMDMONA2305 CM1304 resuable cuff, Large Adu, 33-47cm,with connector - 040-000988-00
  • EEMDMONA2306 resuable cuff, adult thigh 46-66cm, with connector - 040-000993-00
  • EEMDMONA2307Nellcor cable+Neo Sensor - 0651-30-77023
  • EEMDMONA203 DS100A reusable sensor, Adu - 9000-10-05161
  • EEMDDEFA205 NIBP Tubing, Adu/Ped/Infant, with air plug connectors (3m) - 6200-30-09688
  • EEMDPOXC102 Nellcor reusable SpO2 sensor, Adu/Neo, with 50pcs bandage - 9000-10-07336

For EEMDMONP22- and EEMDMONE2200

  • EEMDMONC2314 CM1500B single patient cuff neonate 4.3-8.0cm
  • EEMDMONC2317 CM1500E single patient cuff neonate 8-15cm
  • EEMDMONC2318 CM1501 single patient cuff infant 10-19cm
  • EEMDMONC2319 CM1502 single patient cuff child 18-26cm
  • EEMDMONC2320 CM1503 single patient cuffadult 25-35c
  • EEMDMONC2321 CM1504 single patient cuff large adult 33-47cm
  • EEMDMONC2322 CM1505 single patient cuff adult thigh 46-66cm

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Maintenance

  • Every Day (or between patients)
    • clean and disinfect main unit per user manual 20.3
    • clean and disinfect accessories per user manual 20.4
    • Visual inspection per 21.5.1
    • Power on self-test per 21.5.2
  • Every 3 Months
    • recondition battery per user manual 19.8.1
  • Every 1 Year (or after repair)
    • check battery performance per user manual 19.8.2
    • performance test (calibration) for CO2, printer (21.5.3)
  • Every 2 Year (or after repair)
    • performance test (calibration) for SpO2, NIBP, Temp
    • electrical safety test

Storage

  • Storage temperature -20°C to + 60°C
  • Air pressure 120 hPa to 805 hPa
  • Relative humidity: 10 to 95%

Waste management

Follow MSF GDPR, IPC and Watsan recommendations for disinfection and recyling of electronic waste
