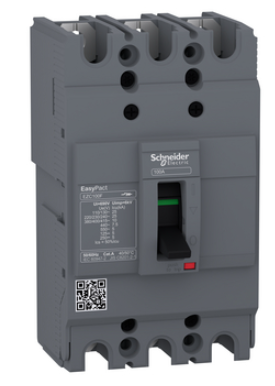

MCCB moulded (EZC100F3100) 1.5-10In 100A 10kA, 3P
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
MCCB moulded (EZC100F3100) 1.5-10In 100A 10kA, 3P
Form
Molded case circuit breaker for low voltage distribution
rated current (In): 100 A
rated impulse withstand voltage (Uimp): 6 kV
rated breaking capacities (Icu): 25 kA @ 110–130 V AC, 25 kA @ 220–240 V AC, 10 kA @ 380–415 V AC, 7.5 kA @ 440 V AC, 5 kA @ 550 V AC
service breaking capacity (Ics): 12.5 kA @ 220–240 V AC, 5 kA @ 400–415 V AC, 3.75 kA @ 440 V AC
trip unit: TM-D thermal-magnetic, 100 A rating at 50 °C
protection type: thermal overload and magnetic short-circuit
control type: toggle handle with positive contact indication
durability: mechanical 13 000 cycles
IP degree: IP20
operating temperature: −25 to +70 °C
dimensions (W × H × D): 75 × 130 × 60 mm
weight: 0.81 kg
Includes : 1 × MCCB (3P 3d, TM-D 100 A).
Per piece.
Fit
installation: main or sub-distribution feeders in LV networks (3-phase systems)
mounting: fixed on backplate with front connection (top / bottom)
terminals: screw connection (25 mm pitch)
accessories compatibility: auxiliary contacts (OF/SD), shunt trip (MX), undervoltage release (MN), rotary handles for EZC range
compatible with EasyPact EZC family
Function
Provides reliable overload and short-circuit protection for low-voltage distribution circuits.
The TM-D thermal-magnetic trip unit ensures accurate protection and fast disconnection under fault conditions.
Its breaking capacity of 10 kA at 415 V AC makes it suitable for building and industrial applications subject to moderate short-circuit levels.
Also serves as a main isolation device with positive contact indication
