INSULATION FOAM TUBE, for 1/4” copper pipe, roll 60m

Form

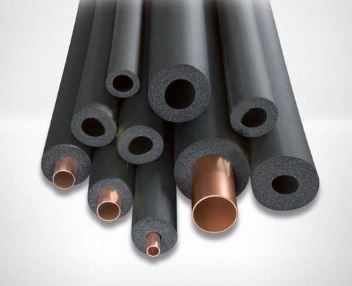

A flexible insulation foam tube for copper pipes without a pre-slit‌ and and an inner diameter of 1/4” or 6 mm.

  • insulation thickness: 9.5mm
  • thermal conductivity: λd ≤ 0.033 [W/(m·K)]
  • material: flexible elastomeric foam based on synthetic rubber (NBR) and factory-made flexible elastomeric foam (FEF)
  • self-adhesive coating
  • color:black
  • thermo-sensitivity: operating temperature -50–110 °C

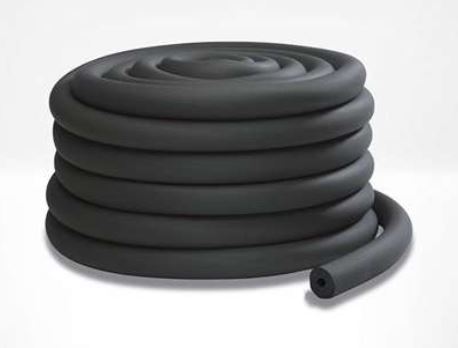

Per 60-metre roll.

Fit

Suitable for copper pipes with a diameter of 1/4” or 6 mm. Insulation and protection for pipes, air ducts, vessels (incl. elbows, fittings, flanges etc.) of air-conditioning and refrigeration and process equipment.

Slide onto pipe or wrap around. Glue or tape may be used to secure the tube on the copper pipe for long lasting installation.

Function

Pipe insulation foam is designed for reliable protection against condensation and energy loss. Typical applications include piping for HVAC and refrigeration systems, split air conditioners, VRV and VRF systems, chillers, and hot and cold water plumbing systems.
