WATER WELL DRILL (PAT-Drill 301TP) + accessoires
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
WATER WELL DRILL (PAT-Drill 301TP) + accessoires
Form

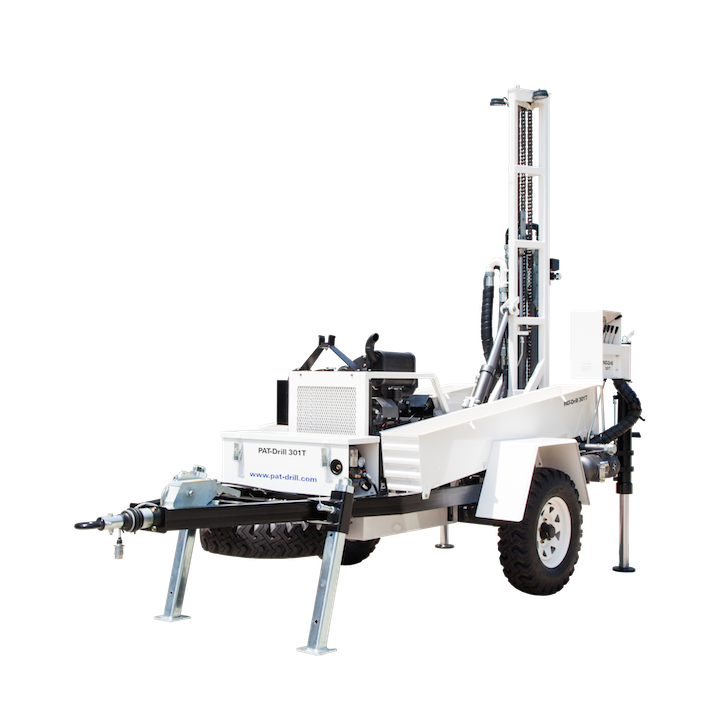

Pat-Drill 301T is a highly compact, mounted on trailer hydraulic drilling rig, available with ll drilling accessories, easy to set up and move.
The accessories that contains are:
- Mud Pump Set, Taki 65-33/2, 2 stage
- Drill pipes 76 mm, 2 m long (50 units)
- Drag bits, stabilizers and Tools
- Basic lubricants for the rig
Fit
The overall size of the Pat-Drill 301T is:
Length (L) - 4.05 m
Width - 1.69 m
Height (H) - 1.75 m
Weight (without drill pipes) - 1450 kg
The Trailer comes with a Towing Ring of 120 mm and ID: 70 mm, thickness of 25 mm, break lights with 7 pin plug connection.
Function
The PAT-Drill 301T is a rotary rig able to complete holes in hard or sedimentary rock. It is one of the lightest rigs and is able to be towed behind most common pick up trucks.
