  3. MCB DC B20, 1000Vdc 10kA, 2P
Public Pricelist

MCB DC B20, 1000Vdc 10kA, 2P

https://msf.oodin.sh/cat/product/98897
NSL PELEMCB02B20T

Valid Article

OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://msf.oodin.sh/web/image/product.template/589335/image_1920?unique=9264c99

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

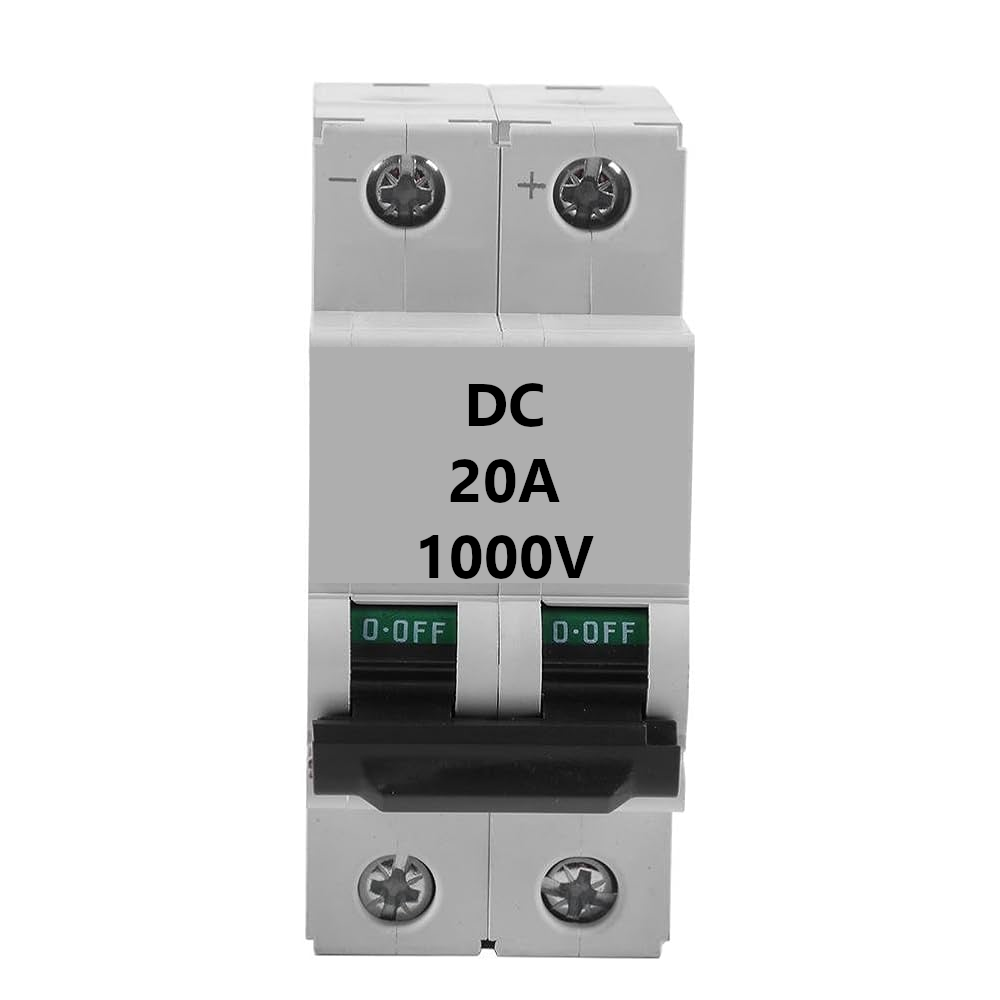

MCB DC B20, 1000Vdc 10kA, 2P

Form

  • MCB (Miniature Circuit Breaker), 2 Pole, 20 Amps

  • tripping Curve: B (Magnetic trip range: 3 to 5 times rated current)

  • rated Voltage: 1000V DC

  • breaking Capacity: 10 kA

  • modular design, standard DIN rail mountable (Width approx. 36mm for 2P)



Fit

  • compatible with main circuit and distribution boards of similar make and technical specifications

  • this device is specifically designed for the protection of a panel or a string of panels in a high-voltage DC circuit (e.g., photovoltaic installation) up to 1000V

  • respecting the correct voltage polarity is required



Function

  • MCBs are electromechanical devices which protect an electrical circuit from an overcurrent (thermal protection) and short circuits (magnetic protection)

  • an MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected

  • curve B Specifics: designed to trip instantaneously between 3 to 5 times the rated current

    • comparison: this is more sensitive than the standard Curve C (which trips at 5-10x rated current)

    • application: curve B is strictly used for the protection of resistive loads (non-inductive) or circuits with long cable runs (where line impedance limits the short-circuit current)
