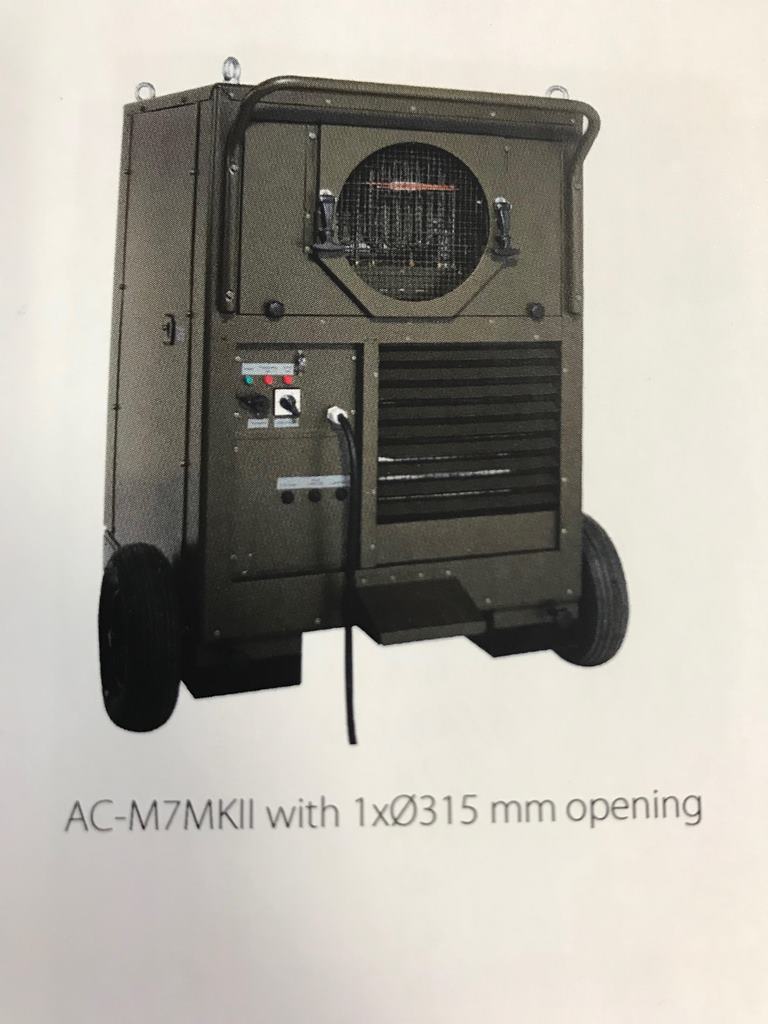

CLIM. (Dantherm AC-M7MKII) clim./chauff. 7.6/7,2kW, 1xØ315mm
Forme
Unité de climatisation portable.
Spécifications techniques:
- débit d'air: 2500 m3/h
- réfrigérant: R134a
- classe de protection: IPX4
- capacité nominale de refroidissement: 7,6 kW
- capacité de chauffage nominale: 7,2 kW
- alimentation: 400V / 3ph / 50 Hz
- puissance max. refroidissement/chauffage: 3,700/7,700 W
- max. courant de fonctionnement, refroidissement / chauffage: 7,2/13 A
- raccordement du tuyau: 1 x Ø 315 mm
- couleur: blanc
- taille (HxLxP): 1150 x 796 x 756 mm
- poids: 190 kg
Per piece.
Intégration
L'unité est dotée d'une sortie d'alimentation en air de 1 x Ø 315 mm et d'une entrée de retour d'air de 1 x Ø 315 mm. Par conséquent, les accessoires de canalisation doivent comprendre :
- 2 x conduit flexible isolé (1 pour l'alimentation et 1 pour l'air de retour) : CCLIAIRCA3DI
- 1 x conduit non isolé : CCLIAIRCA3DN
- 1 x conduit de diffuseur perforé : CCLIAIRCA3UN
- 1 thermostat : CCLIAIRCAMTR
Fonction
Cette unité de climatisation est destinée à être utilisée des tentes trop fraîches et trop chaudes.
Avec le thermostat, la régulation de la température sera automatique en fonction de la température réglée.
Il doit être placé à l'extérieur des tentes et recirculera et refroidira l'air à l'intérieur des tentes par des conduits d'alimentation et de retour d'air.
![[KPROKAIRM71] KIT, CLIMATISEUR (Dantherm AC-M7MKII), 1xØ315mm](/web/image/product.template/586489/image_256/%5BKPROKAIRM71%5D%20KIT%2C%20CLIMATISEUR%20%28Dantherm%20AC-M7MKII%29%2C%201x%C3%98315mm?unique=585c06a)
![[CCLIAIRCA2F] (AC-24) FILTRE POUSSIERE (Dantherm 081579)](/web/image/product.template/563380/image_256/%5BCCLIAIRCA2F%5D%20%28AC-24%29%20FILTRE%20POUSSIERE%20%28Dantherm%20081579%29?unique=e8b50a9)
![[CCLIAIRCAVFC] (Dantherm AC) FILTRE A AIR, pour condensateur](/web/image/product.template/566718/image_256/%5BCCLIAIRCAVFC%5D%20%28Dantherm%20AC%29%20FILTRE%20A%20AIR%2C%20pour%20condensateur?unique=98a149a)
![[CCLIAIRCA7A] (ACM7) INTERRUPTEUR AUXILIAIRE (Dantherm 510570/081687)](/web/image/product.template/566750/image_256/%5BCCLIAIRCA7A%5D%20%28ACM7%29%20INTERRUPTEUR%20AUXILIAIRE%20%28Dantherm%20510570-081687%29?unique=50e7a15)
![[CCLIAIRCA7B] (ACM7) BUTTON POUSS (Dantherm 19483/075483) caoutchouc, 5pce](/web/image/product.template/566791/image_256/%5BCCLIAIRCA7B%5D%20%28ACM7%29%20BUTTON%20POUSS%20%28Dantherm%2019483-075483%29%20caoutchouc%2C%205pce?unique=0c6a7ca)
![[CCLIAIRCA7C2] (ACM7) CONTACTEUR (Dantherm 19475/075404) Cl 9, 24V](/web/image/product.template/566753/image_256/%5BCCLIAIRCA7C2%5D%20%28ACM7%29%20CONTACTEUR%20%28Dantherm%2019475-075404%29%20Cl%209%2C%2024V?unique=0c6a7ca)
![[CCLIAIRCA7E] (ACM7) STANDARD A PIED colore (Dantherm 064430)](/web/image/product.template/566780/image_256/%5BCCLIAIRCA7E%5D%20%28ACM7%29%20STANDARD%20A%20PIED%20colore%20%28Dantherm%20064430%29?unique=50e7a15)
![[CCLIAIRCA7FC] (ACM7) VENTILATEUR pr. condensateur (Dantherm 18523/081582)](/web/image/product.template/566763/image_256/%5BCCLIAIRCA7FC%5D%20%28ACM7%29%20VENTILATEUR%20pr.%20condensateur%20%28Dantherm%2018523-081582%29?unique=50e7a15)
![[CCLIAIRCA7FE] (ACM7) VENTILATEUR pour evaporateur (Dantherm 18524/075499)](/web/image/product.template/566761/image_256/%5BCCLIAIRCA7FE%5D%20%28ACM7%29%20VENTILATEUR%20pour%20evaporateur%20%28Dantherm%2018524-075499%29?unique=50e7a15)
![[CCLIAIRCA7G] (ACM7) JOINT pour chauffage (Dantherm 062670) 10 pcs](/web/image/product.template/566787/image_256/%5BCCLIAIRCA7G%5D%20%28ACM7%29%20JOINT%20pour%20chauffage%20%28Dantherm%20062670%29%2010%20pcs?unique=50e7a15)
![[CCLIAIRCA7H4] (ACM7) ELEMENT DE CHAUFFAGE (Dantherm 506060/086207) 2400W](/web/image/product.template/566789/image_256/%5BCCLIAIRCA7H4%5D%20%28ACM7%29%20ELEMENT%20DE%20CHAUFFAGE%20%28Dantherm%20506060-086207%29%202400W?unique=50e7a15)
![[CCLIAIRCA7I] (ACM7) MINUTERIE (Dantherm 19273/086206)](/web/image/product.template/566752/image_256/%5BCCLIAIRCA7I%5D%20%28ACM7%29%20MINUTERIE%20%28Dantherm%2019273-086206%29?unique=0c6a7ca)
![[CCLIAIRCA7L] (ACM7) SECHEUR LIGNE fluide (Dantherm 607230/298974)](/web/image/product.template/566755/image_256/%5BCCLIAIRCA7L%5D%20%28ACM7%29%20SECHEUR%20LIGNE%20fluide%20%28Dantherm%20607230-298974%29?unique=50e7a15)
![[CCLIAIRCA7M] (ACM7) COMPRESSEUR (Dantherm 12921/081581)](/web/image/product.template/566759/image_256/%5BCCLIAIRCA7M%5D%20%28ACM7%29%20COMPRESSEUR%20%28Dantherm%2012921-081581%29?unique=50e7a15)
![[CCLIAIRCA7N] (ACM7) TRANSFORMATEUR (Dantherm 18527/081686)](/web/image/product.template/566794/image_256/%5BCCLIAIRCA7N%5D%20%28ACM7%29%20TRANSFORMATEUR%20%28Dantherm%2018527-081686%29?unique=50e7a15)
![[CCLIAIRCA7OU] (ACM7) CONTROLE circuit de courant (Dantherm 511610/086199)](/web/image/product.template/566748/image_256/%5BCCLIAIRCA7OU%5D%20%28ACM7%29%20CONTROLE%20circuit%20de%20courant%20%28Dantherm%20511610-086199%29?unique=50e7a15)
![[CCLIAIRCA7RT] (ACM7) RELAIS (Dantherm 511410/081692) Thermo Tl 16](/web/image/product.template/566792/image_256/%5BCCLIAIRCA7RT%5D%20%28ACM7%29%20RELAIS%20%28Dantherm%20511410-081692%29%20Thermo%20Tl%2016?unique=0c6a7ca)
![[CCLIAIRCA7SB] (ACM7) PRESSOSTAT pression basse (Dantherm 298976)](/web/image/product.template/566782/image_256/%5BCCLIAIRCA7SB%5D%20%28ACM7%29%20PRESSOSTAT%20pression%20basse%20%28Dantherm%20298976%29?unique=0c6a7ca)
![[CCLIAIRCA7SH] (ACM7) PRESSOSTAT pression elevee (Dantherm 32296/086414)](/web/image/product.template/566781/image_256/%5BCCLIAIRCA7SH%5D%20%28ACM7%29%20PRESSOSTAT%20pression%20elevee%20%28Dantherm%2032296-086414%29?unique=0c6a7ca)
![[CCLIAIRCA7TL] (ACM7) THERMOSTAT limitation (Dantherm 513625/086210)](/web/image/product.template/566783/image_256/%5BCCLIAIRCA7TL%5D%20%28ACM7%29%20THERMOSTAT%20limitation%20%28Dantherm%20513625-086210%29?unique=0c6a7ca)
![[CCLIAIRCA7TO] (ACM7) THERMOSTAT OT (Dantherm 513623/086208)](/web/image/product.template/566785/image_256/%5BCCLIAIRCA7TO%5D%20%28ACM7%29%20THERMOSTAT%20OT%20%28Dantherm%20513623-086208%29?unique=0c6a7ca)
![[CCLIAIRCA7W] (ACM7) COUV. D'ECLABOUSSURE D'EAU (Dantherm 18666/086204)](/web/image/product.template/566747/image_256/%5BCCLIAIRCA7W%5D%20%28ACM7%29%20COUV.%20D%27ECLABOUSSURE%20D%27EAU%20%28Dantherm%2018666-086204%29?unique=50e7a15)
![[CCLIAIRCA7X] (ACM7) EXPANSION THERMOSTATIQUE (Dantherm 603967)](/web/image/product.template/566757/image_256/%5BCCLIAIRCA7X%5D%20%28ACM7%29%20EXPANSION%20THERMOSTATIQUE%20%28Dantherm%20603967%29?unique=0c6a7ca)
![[CCLIAIRCAVD1] (Dantherm AC) GAINE AIR isolé, Ø315mmx3m, flexible + housse](/web/image/product.template/566426/image_256/%5BCCLIAIRCAVD1%5D%20%28Dantherm%20AC%29%20GAINE%20AIR%20isol%C3%A9%2C%20%C3%98315mmx3m%2C%20flexible%20%2B%20housse?unique=a3fe6d5)
![[CCLIAIRCAVD2] (Dantherm AC) GAINE AIR non-isolé, Ø315mmx5m flexible+housse](/web/image/product.template/566423/image_256/%5BCCLIAIRCAVD2%5D%20%28Dantherm%20AC%29%20GAINE%20AIR%20non-isol%C3%A9%2C%20%C3%98315mmx5m%20flexible%2Bhousse?unique=a3fe6d5)
![[CCLIAIRCAVD7] (Dantherm AC)GAINE AIR isolé,Ø315mmx3m,flexible,blanc+housse](/web/image/product.template/586488/image_256/%5BCCLIAIRCAVD7%5D%20%28Dantherm%20AC%29GAINE%20AIR%20isol%C3%A9%2C%C3%98315mmx3m%2Cflexible%2Cblanc%2Bhousse?unique=627f93a)
![[CCLIAIRCAVTR] (Dantherm AC) THERMOSTAT + 15m de câble](/web/image/product.template/558476/image_256/%5BCCLIAIRCAVTR%5D%20%28Dantherm%20AC%29%20THERMOSTAT%20%2B%2015m%20de%20c%C3%A2ble?unique=384a6bf)
![[CCLIAIRCAVU2] (Dantherm AC) GAINE DISTRIBUTION perforé, Ø315mmx5m + housse](/web/image/product.template/566422/image_256/%5BCCLIAIRCAVU2%5D%20%28Dantherm%20AC%29%20GAINE%20DISTRIBUTION%20perfor%C3%A9%2C%20%C3%98315mmx5m%20%2B%20housse?unique=a3fe6d5)
![[CCLIAIRCAVU4] (Dantherm AC) GAINE DISTRIBUTION EXTENSION perforé Ø315mmx2m](/web/image/product.template/566420/image_256/%5BCCLIAIRCAVU4%5D%20%28Dantherm%20AC%29%20GAINE%20DISTRIBUTION%20EXTENSION%20perfor%C3%A9%20%C3%98315mmx2m?unique=a3fe6d5)
![[CCLIAIRCAVU9] (Dantherm AC) GAINE DISTRIB. EXTENSION perforé, Ø315mmx2,5m](/web/image/product.template/586587/image_256/%5BCCLIAIRCAVU9%5D%20%28Dantherm%20AC%29%20GAINE%20DISTRIB.%20EXTENSION%20perfor%C3%A9%2C%20%C3%98315mmx2%2C5m?unique=c21c893)
