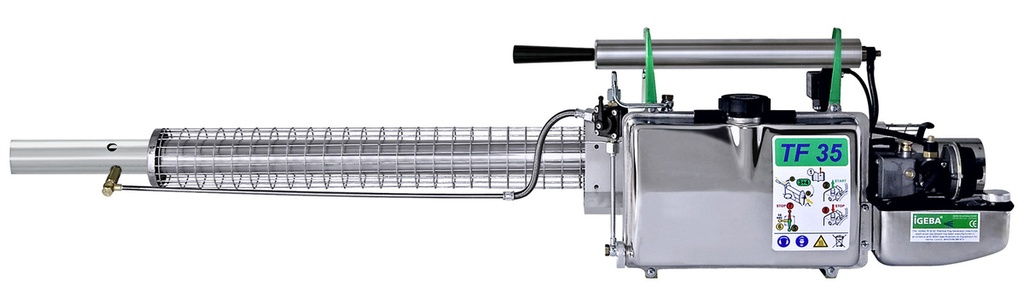

THERMOFOGGER (Igeba TF-35) 5.7 l

Definition

Portable thermal fogger used for area spraying of insecticides, targeting insects acting as vector of infectious diseases such as dengue and Chikungunya.

The equipment uses heat to vaporize insecticide solutions, creating a fog of droplets smaller than 20 µm. This fog spreads in a large area, killing the vectors in this area.

Part of KWATKDEN1-- KIT, DENGUE/CHIKUNGUNYA, 10000 people, in module KWATMDEN02-.

Including protective gear. Per set.

Specifications

Specifications are in accordance to guidelines defined by the WHO Pesticide Evaluation Scheme (WHOPES)

  • solution tank capacity: 5.7 litre
  • weight (empty): 7.9 kg
  • weight of equipment (with full fuel tank and full solution tank): < 20 kg
  • main components mounted on frame
  • main components made of stainless steel
Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Fuel tank capacity: 1.2 litre
  • Performance of combustion chamber: 18.3 KW or 24,8 HP
  • Fuel consumption: approx. 2 litres/hour
  • Average flow rate (oil based): 20 litres/hour
  • Max. flow rate (oil based): 42 litres/hour
  • Flow rate with water: 10 litres/hour
  • Efficient horizontal reach in closed rooms with water and carrier: 40
  • Efficient horizontal reach in closed rooms with water: 8
  • Energy supply: 4 x .5V monocells
  • Pressure in solution tank: approx.: 0.25 bar

Dimensions

Dimensions (L x W x H): 137.5 x 27 x 34 cm.

Instructions for use

Always follow the instruction manual when using the equipment.

Only to be used with the appropriate insecticide. Involve your technical referent in choosing of appropriate insecticide and vector control strategies.

When used with a water soluble solution, always use together with the following items:

  • CWATFOGGI3T - (thermofogger TF-35) TUBE, for water based solution
  • CWATFOGGV1T - TRACER for thermofogger (Visiofume) per litre

Always to be operated with protective gear provided in the set.

NEVER eat, drink or smoke while using the thermofogger!

Maintenance

Follow the maintenance instructions provided in manual document working hours so maintenance interval can be met.

Storage

Short term:

  • store in a dry, secure location sheltered from frost
  • keep out of the reach of children
  • clean the unit after each use

Long term (>3 months):

  • drain and clean the fuel tank- dispose of fuel according to environmental requirements
  • run the engine until the carburettor is dry
  • clean the machine thoroughly, paying special attention to the cylinder fins and air filter
Some restricted information has been hidden. Sign in to see this information
P402Store in a dry place.
P403Store in a well-ventilated place.
P405Store locked up.
P403 + P235Store in a well-ventilated place. Keep cool.
P201Obtain special instructions before use.
P202Do not handle until all safety precautions have been read and understood.
P260Do not breathe dust/fume/gas/mist/vapours/spray.
P262Do not get in eyes, on skin, or on clothing.
P270Do not eat, drink or smoke when using this product.
P280Wear protective gloves/protective clothing/eye protection/face protection
