BALL VALVE full flow, brass, 2", FxF threaded
STD
CWATCBVABT2IF
Valid Article
Account code:
61010
HS Code:
730799
Last Updated on:
12/04/2024, 14:31:54
Former
Code(s):
CWATVALV2BF CWATVALVTB2IF
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
BALL VALVE full flow, brass, 2", FxF threaded
Form

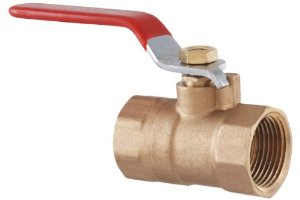

Brass valve with a lever/handle to open or close in ¼ turn (as opposed to a gate valve that takes several turns to operate). The handle is usually in red. Both ends are 2" or ND50, female threaded, British Standard Pipe Taper thread (BSPT). Full flow: the hole in the ball is the same size as the pipeline resulting in lower friction loss. Per piece.
Fit
To be fixed to 2" or ND50 pipes or devices.
Function
Used in a water installation to allow rapid closing and opening of the system. Not recommended to regulate a flow; for this a gate valve is recommended: CWATCBVAGT2IF.
.
