KIT, MOTOR PUMP, DIESEL, 48 m³/h max, 150 m max

Definition

High pressure surface centrifugal pump, delivering maximum 150 metre head and 48m³/h maximum flow. Powered by a diesel engine. All mounted in a metallic frame.

Indications

MOTOR PUMP

  • Guillemin coupling 3" at inlet and outlet
  • Elbow 90º for horizontal outlet
  • Pump + engine mounted on a frame
  • Maximum suction head: 7 m
  • Maximum total head: 150 m
  • Maximum yield: 48 m3/h

KIT

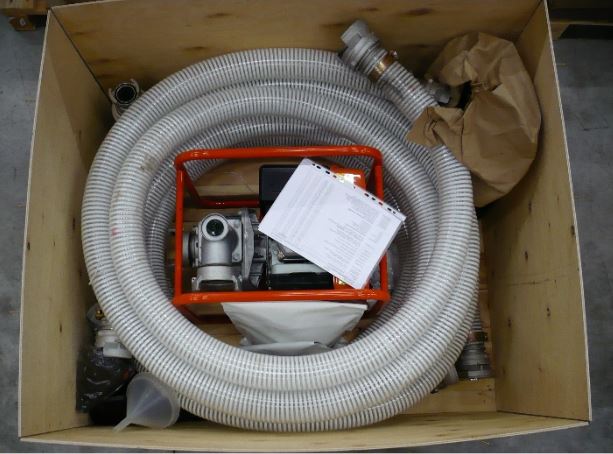

The kit contains all the accessories and consumables required for the functioning and maintenance of the pump. Its exact composition could differ according to the model of pump which is supplied.

Instructions for use

To be used for pumping clear water only (turbid water would damage the pump).

Kit supplied with user manual.

Check that the performance curve of the pump suits your situation:

  • Fill the oil pan prior to first use and check the level daily.
  • Check the fuel quality (no water or impurities). Use the funnel with water retention filter to fill the tank.
  • For the suction, use only the long spiral hose and strainer supplied in the kit.
  • On the discharge side, the 3" outlet assemblies (short spiral hose + gate valve and non-return valve) must be connected in between the pump and the pipeline to ease the disconnection of the pump and to prevent water hammering.
  • It is possible to create a large distribution system with the pump delivering water from a reservoir directly to several tap stands without needing gravity. In this case, it is necessary to integrate the little piece of spiral hose and the T-piece (included in the kit) for the recirculation of water towards the reservoir when all taps are closed.
  • Prime the pump with water before starting.
  • Train the staff in proper operation, follow-up and maintenance of the pump.
  • Maintenance: every 100 hours. Fill in the maintenance logbook.

For more detailed information and instructions see also the Owner's manual (integrated in kit) and "Public Health Engineering in Precarious Situations", MSF, 2nd edition, 2010:

  • T.B. 2.25 Centrifugal pumps
  • T.B. 2.28 Motor pump kit installation
    Some restricted information has been hidden. Sign in to see this information
    [CWATBANDH85] BAND CLIP high pressure, Ø 80-85mm, simple tightening CWATBANDH85 STD BAND CLIP high pressure, Ø 80-85mm, simple tightening 6 mandatory
    [CWATCBVABT2IF] BALL VALVE full flow, brass, 2", FxF threaded CWATCBVABT2IF STD BALL VALVE full flow, brass, 2", FxF threaded 1 mandatory
    [CWATCBVAFT2IF] NON-RETURN VALVE flapping, brass, 2", FxF threaded CWATCBVAFT2IF STD NON-RETURN VALVE flapping, brass, 2", FxF threaded 1 mandatory
    [CWATCCPLTTIM] CAP threaded, cast iron, ¾", male CWATCCPLTTIM STD CAP threaded, cast iron, ¾", male 1 mandatory
    [CWATCGCOFD2HF] FLANGE COUPLING, cast iron, 2"½, NP16 CWATCGCOFD2HF STD FLANGE COUPLING, cast iron, 2"½, NP16 1 mandatory
    [CWATCGCOFD2HG] (flange coupling 2"½) GASKET CWATCGCOFD2HG STD (flange coupling 2"½) GASKET 2 mandatory
    [CWATCGCOFD2IF] FLANGE COUPLING, cast iron, 2", NP16 CWATCGCOFD2IF STD FLANGE COUPLING, cast iron, 2", NP16 1 mandatory
    [CWATCGCOFD2IG] (flange coupling 2") GASKET CWATCGCOFD2IG STD (flange coupling 2") GASKET 2 mandatory
    [CWATCGCOL12HM] LONG TUBE COUPLING threaded, galvanized, Ø 2"½, 100mm, MxM CWATCGCOL12HM STD LONG TUBE COUPLING threaded, galvanized, Ø 2"½, 100mm, MxM 1 mandatory
    [CWATCGCOTD2IM] CONNECTOR COUPLING threaded, galvanized, Ø 2", MxM CWATCGCOTD2IM STD CONNECTOR COUPLING threaded, galvanized, Ø 2", MxM 3 mandatory
    [CWATCGELT43IX] ELBOW COUPLING 45° threaded, galvanized, 3", FxM CWATCGELT43IX STD ELBOW COUPLING 45° threaded, galvanized, 3", FxM 1 mandatory
    [CWATCGRET2ITY] REDUCER COUPLING threaded, galvanized, 2"-¾", MxF CWATCGRET2ITY STD REDUCER COUPLING threaded, galvanized, 2"-¾", MxF 1 mandatory
    [CWATCGRET32HY] REDUCER COUPLING threaded, galvanized, 3"-2"½, MxF CWATCGRET32HY STD REDUCER COUPLING threaded, galvanized, 3"-2"½, MxF 1 mandatory
    [CWATCGTETD2IF] T-COUPLING threaded, galvanized, 2x2x2", FxFxF CWATCGTETD2IF STD T-COUPLING threaded, galvanized, 2x2x2", FxFxF 1 mandatory
    [CWATCSEMG73L] REDUCER HALF-COUPLING symmetrical, 3"-75mm, grooved + lock CWATCSEMG73L STD REDUCER HALF-COUPLING symmetrical, 3"-75mm, grooved + lock 2 mandatory
    [CWATCSEMN3I3] (symmetrical half-coupling) PARTS CLAMP, 3"-Ø75mm CWATCSEMN3I3 STD (symmetrical half-coupling) PARTS CLAMP, 3"-Ø75mm 4 mandatory
    [CWATCSEMN3IL] REDUCER HALF-COUPLING symmetrical, 3", notch reduced + lock CWATCSEMN3IL STD REDUCER HALF-COUPLING symmetrical, 3", notch reduced + lock 4 mandatory
    [CWATCSEMT3I0F] SYMMETRICAL HALF-COUPLING, 3", female threaded, w/o lock CWATCSEMT3I0F STD SYMMETRICAL HALF-COUPLING, 3", female threaded, w/o lock 1 mandatory
    [CWATCSEMT3I0M] SYMMETRICAL HALF-COUPLING, 3", male thread, w/o lock CWATCSEMT3I0M STD SYMMETRICAL HALF-COUPLING, 3", male thread, w/o lock 1 mandatory
    [CWATHOFD3PM5] HOSE flat, 3", NP15, delivery, per metre CWATHOFD3PM5 STD HOSE flat, 3", NP15, delivery, per metre 20 mandatory
    [CWATHOSS3PM5-] SPIRAL HOSE suction/delivery, 3", NP5, per metre CWATHOSS3PM5- STD SPIRAL HOSE suction/delivery, 3", NP5, per metre 8 mandatory
    [CWATPUMED48] MOTOR PUMP diesel, 48m³h/150m CWATPUMED48 STD MOTOR PUMP diesel, 48m³h/150m 1 mandatory
    [CWATSEALTT9] TAPE (Teflon) 19mmx15m, 0.2mm thick, roll CWATSEALTT9 STD TAPE (Teflon) 19mmx15m, 0.2mm thick, roll 6 mandatory
    [CWATSTRA3N-] STRAINER non-return, 3" ND80 + sieve CWATSTRA3N- STD STRAINER non-return, 3" ND80 + sieve 1 mandatory
    [CWATTOOLH23] HOOK SPANNER, 2"-3", for Guillemin coupling CWATTOOLH23 STD HOOK SPANNER, 2"-3", for Guillemin coupling 2 mandatory
    [PHDWBOLT16H70] BOLT, black, M16x70mm, hexagonal head PHDWBOLT16H70 STD BOLT, black, M16x70mm, hexagonal head 12 mandatory
    [PTOOHEXA005SM] HEXAGONAL KEY 90°, short, 5mm, 82H.5 PTOOHEXA005SM STD HEXAGONAL KEY 90°, short, 5mm, 82H.5 1 mandatory
    [PTOOMEASVHC] HOUR COUNTER vibration, with button battery PTOOMEASVHC STD HOUR COUNTER vibration, with button battery 1 mandatory
    [PTOOSTORBSVT] TOOLBAG soft, for vehicle PTOOSTORBSVT STD TOOLBAG soft, for vehicle 1 mandatory
    [PTOOWRENP4I0C] CHAIN WRENCH double effect, 2"-4", for pipe, 136A.2 PTOOWRENP4I0C STD CHAIN WRENCH double effect, 2"-4", for pipe, 136A.2 1 mandatory
    [TVEAFUNN21W] FUNNEL + FILTER water separator, Ø 216mmx250mm TVEAFUNN21W STD FUNNEL + FILTER water separator, Ø 216mmx250mm 1 mandatory
    [TVEAJERR2MR] JERRYCAN, metal, 20l, for fuel TVEAJERR2MR STD JERRYCAN, metal, 20l, for fuel 1 mandatory
    [TVECOILE5405] ENGINE OIL 15W40 API SJ/CF, 5l, petrol / diesel, can TVECOILE5405 STD ENGINE OIL 15W40 API SJ/CF, 5l, petrol / diesel, can 2 mandatory
    [YLOM2175-044] FILTER, OIL, 2175 044,for Lombardini engine 9LD YLOM2175-044 NST FILTER, OIL, 2175 044,for Lombardini engine 9LD 6 mandatory
    [YLOM2175-046] FILTER, GASOIL, 2175 046, for Lombardini engine 9LD YLOM2175-046 NST FILTER, GASOIL, 2175 046, for Lombardini engine 9LD 6 mandatory
