TEST LUNG, 1 l, for ventilator

STD EIMTVETE02-

Valid Article

Former Code(s): EANEANAA218 EANEMISC080 EANEZFR0080 EANEZBE0140
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
The order of this product needs to be justified and is only acceptable under certain conditions.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist

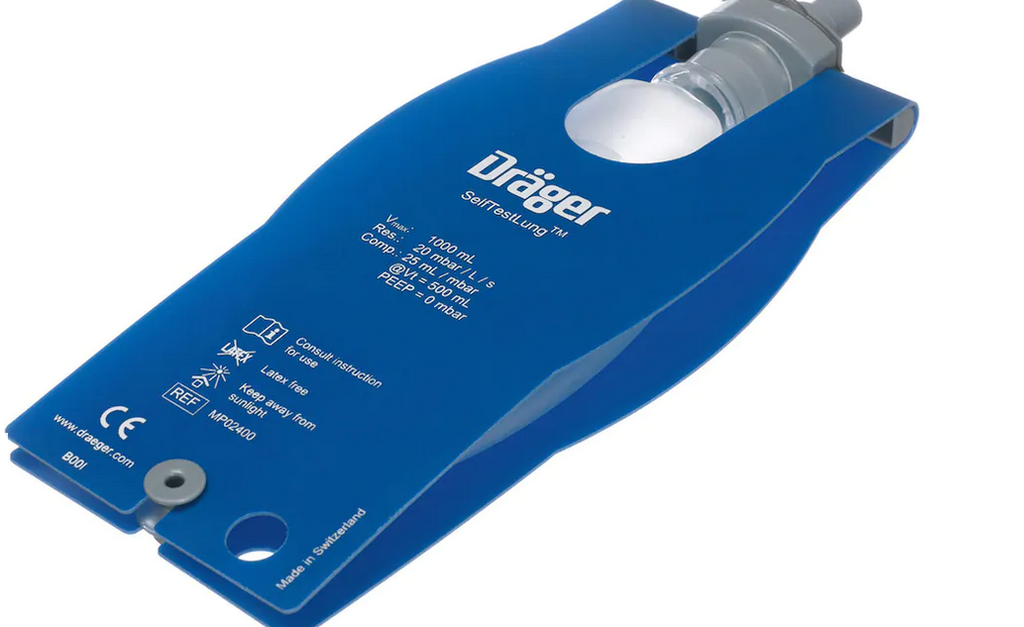

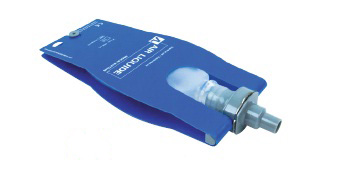

TEST LUNG, 1 L

Definition

A device used to simulate/mimic the human lung or lungs by imitating their physical properties. This device, commonly known as a test lung, may be a simple ventilation bag filled with foam rubber, or a complicated device, usually mechanical, that can be adjusted to imitate, e.g., change in compliance, airway restrictions, lung perforation.

It is intended to be used by a healthcare provider in a clinical setting for the purpose of, e.g., maintenance, testing, user control of a ventilator and for the education of clinical staff.

The test lung allows to control the functions and the precisions of the different ventilators not connected to the patient, and to simulate the resistive and elastic parameters of a lung

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Category: adult
  • Compliance: 25 ml/mbar with Vt = 500 ml, PEP = 0 mbar
  • Volume 1l
  • Resistance 20 mbar/l/s

Dimensions

  • Dimensions 300 x 115 x 42 mm
  • Weight 190 g

Instructions for use

Surface disinfection between each use.

MSF requirements

Test lung compatible with the Monnal intensive care ventilator T60, and the anaesthesia ventilator Glostavent Helix.
