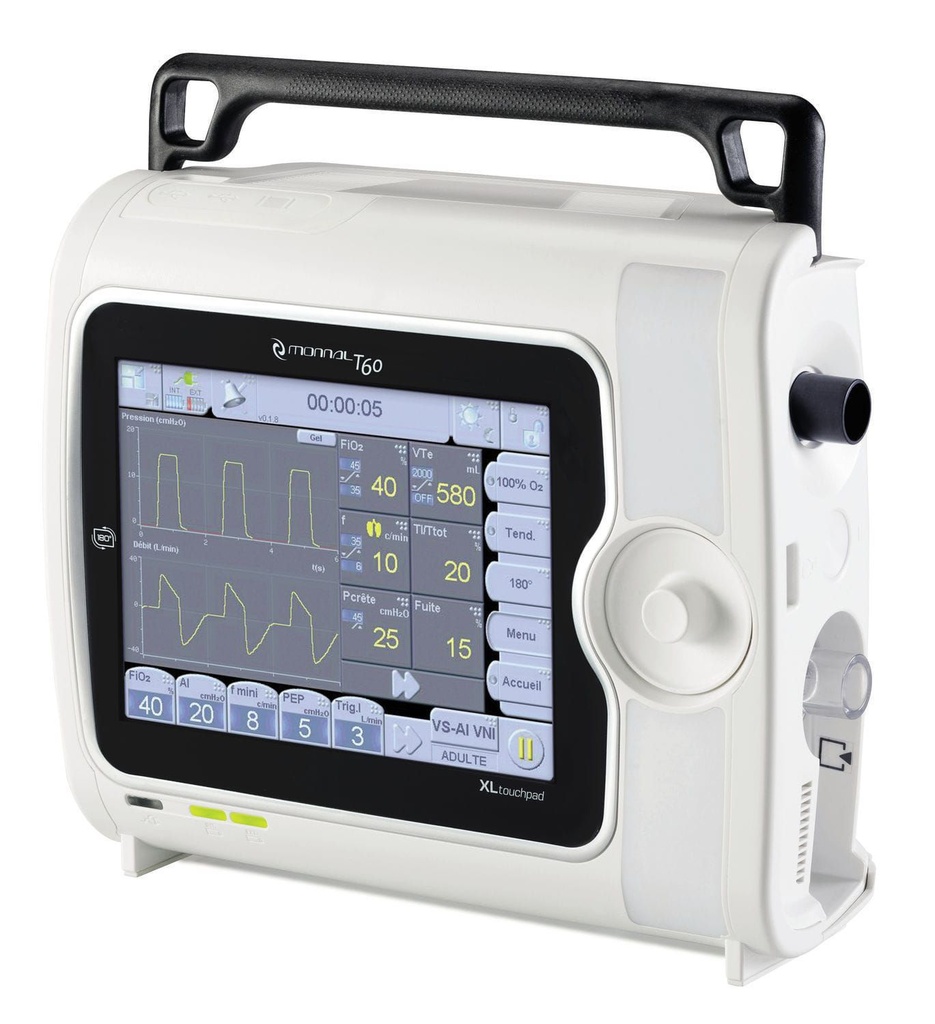

INTENSIVE CARE VENTILATOR (Monnal T60)

Definition

Turbine ventilator dedicated to emergency and intensive care services, suitable for intra- and extra-hospital travel. It is a mixed, barometric and volumetric fan. It can be used in invasive and non-invasive ventilation. The possibilities of combining ventilatory modes in controlled, assisted, intermittent or aid allow the ventilation of a wide range of pediatric or adult patients.

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

  • EN 794-3, 1998, +A2 2009 Lung ventilators. Part 3: Particular requirements for emergency and transport ventilators
  • EN 1789, 2020, Medical vehicles and their equipment - Road ambulances
  • EN 13718-1, 2014, +A1 2020 Medical vehicles and their equipment. Air ambulances. Part1: Requirements for medical devices used in air ambulances
  • ISO 80601-2-12, 2020, edition 2, Medical electrical equipment - Part 2-12: Particular requirements for basic safety and essential performance of critical care ventilators

Components

  • 1 x Ventilator Monnal T 60 ref. KA010000
  • 2 x Paediatric patient circuit double branch with water trap VB095100
  • 2 x Adult patient circuit double branch with water trap VB095200
  • 2 x Expiratory valve Monnal with membrane KY694500
  • 200 x SCTDBRCF3A- FILTER, BREATHING CIRCUIT + HME, 22M/15F, adult, s.u.
  • 100 x SCTDBRCF3C- FILTER, BREATHING CIRCUIT + HME, 22M/15F, child, s.u.

    Technical specifications

    General

    • Type of gas fitting: NF, DISS, NIST
    • O2 supply: 2.8 to 6 bars
    • O2 low range: 0 à 1.5 bars / 0 - 85L/min
    • Max. Blower flow (air): 230L/min
    • Max. rotation speed: 70 000rpm
    • Noise: 48dBA at 1m

    Screen

    • LCD color resistive touch-screen
    • Dimensions: 21.3 cm
    • Display resolution 640 * 480 pixels
    • Luminosity: 800 cd/m2

    Power supply

    • Voltage: 100 - 240V AC (tolerance -25%; +15%)
    • Consumption: 115 VA
    • Battery type: Lithium-ion 24V - 2.6Ah - < 100 Wh
    • Running Time: 2h30 for each battery
    • Full charge battery time:
      • 2h30 in stand-by
      • 5h30 in ventilation

    Operating conditions:

    • Temperature -10°C to +40°C (14°F to 104°F)
    • Relative humidity: 0 to 95% without condensation at 40°C max.
    • Atmospheric pressure: 600 to 1150hPa

    Dimensions

    • External dimensions (L x W x H): 29 x 25 x 11 cm
    • Weight: 3.7kg (ext. battery +300g)

    Transport Dangerous Goods

    • UN3481 Lithium ion batteries contained in equipment
    • Class: 9
    • Packing Instructions: 967 Section II
    • The label must include the UN code of the battery + an emergency number to contact in case of an incident
    • Limit per package:
      • Pax A/C (Passengers & Cargo Aircraft) = 5 kg
      • CAO (Cargo Aircraft Only) = 5 kg

    To be Ordered Separately

    • Trolley for Monnal T60: support for humidifier, cylinder, articulated arm, autoclavable basket.
    • Wall-mounted charging station

    Instructions for use

    • Available ventilation modes: (A)VCV, (A)PCV, PSV, VSIMV, (invasive and non-invasive) CPAP, Duo-Levels (NIV only)
    • Automatic emergency modes: by simple adjustment for weight.
    • Automatic monitoring of Plateau Pressure for lung protection.
    • Automatic leak detection and compensation.
    • Monitoring of CO2 is optional.

    Maintenance

    Regular replacement:

    • Circuit patient: replacement depends on hospital protocol
    • Air inlet filter Monnal Clean'In HEPA (KY691400): replaced every 6 months
    • Expiratory assembly (flow sensor and expiratory valve):
    • O2 Cell (YR049700)): replacement recommended every year (lifetime = 5000h), also dependent on O2 concentration and ambient temperature.
    • Bacteriological filter (KV103300): replacement as often as possible.
    • Interchangeable battery (KY692800)
      • replacement every 3 years
      • Indicate date of entry on label
    • Lip seal, expiratory valve (YJ105706): replace every year.
    • Intake inlet filter (KY696100): replace every year.

    Storage

    • Temperature -30°C to +70°C (-22°F to +158°F)
    • Relative humidity: 0 to 95% without condensation at 40°C max.
    • Atmospheric pressure 500 to 1150hPa

    MSF requirements

    For non-invasive and invasive ventilation in Intensive Care Unit, Critical Care and in a high level ambulance system.
