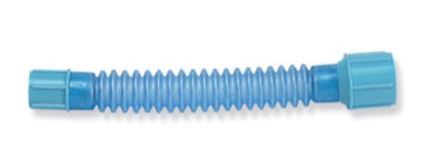

CATHETER MOUNT, reusable, SI, straight, 150mm
STD
EANECATM1R-
Valid Article
Account code:
60100
HS Code:
901890
Last Updated on:
02/09/2024, 22:03:44
R020201 - Fixed catheter mounts
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit.
A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
CATHETER MOUNT
Definition
A device used to connect a respiratory circuit (e.g., an anaesthesia breathing circuit or ventilator breathing circuit) or a resuscitator to an endotracheal (ET) tube, to enable increased mobility at the patient end of the circuit or connections.
Synonym
Extension tubing
Specifications
Technical specifications
- Flexible silicone tube
- Straight (EANECATM1R-) or with elbow (EANECATM2R-)
- No suction port
- Length: 150 mm
- Standard connection: 15/22 mm:
- distal end: female 15 mm internal Ø connection (with the endotracheal tube) / 22 mm outer Ø
- proximal end: male 15 mm external Ø connection (with the valve).
- Autoclavable
- Non sterile, reusable
Instructions for use
Reserved for anaesthetists and intensive care units.
Some restricted information has been hidden. Sign in
to see this information
Maintenance
Must be pre-disinfected, cleaned and sterilized by steam autoclave after each use.
(Cf Introduction: Disinfection and sterilization in the field)
MSF requirements
Optional part in a respiratory circuit, which is usually placed between the endotracheal tube and the expiratory valve in order to increase mobility at the patient end of the circuit.
Catheter mount that can be disinfected or sterilized.
Some restricted information has been hidden. Sign in
to see this information
