MEASURING APPARATUS, paediatric, hor./vert., 130 cm, wood

https://unicat.msf.org/cat/product/12564
STD EANTMEAA3P-

Valid Article

Article is intended to be used with children (<12 years) ONLY.
V030209 - Clinical altimeters
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

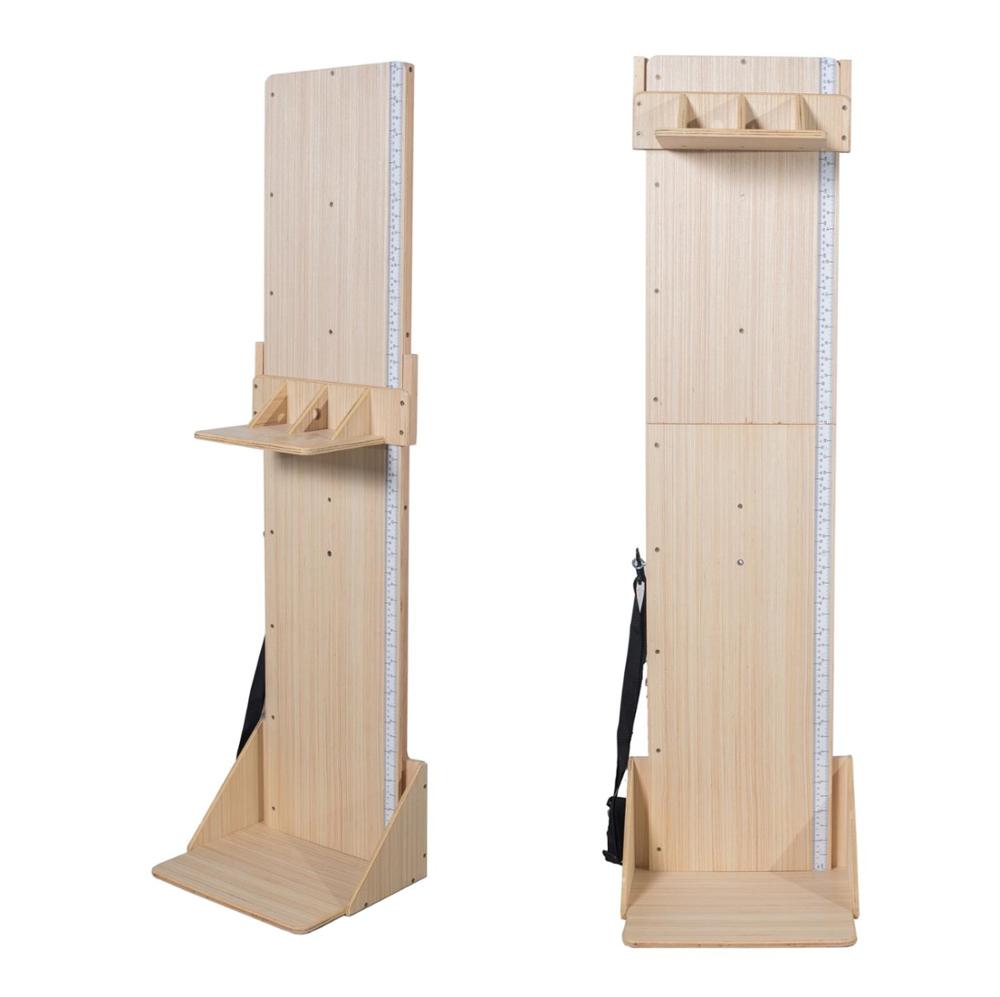

MEASURING APPARATUS paediatric, wood

Definition

Device designed to measure the height of children in a horizontal or vertical position.

Specifications

Technical specifications

  • Wood, craft manufacture
  • Measuring board with sliding head / foot piece, non removable (to avoid placing the slider in a wrong position)
  • Self-lock slider with internal spring
  • Measuring tape on one side
  • Maximum height: 130 cm
  • Folds to 75 cm
  • Width: 25 cm
  • Weight: 5.3 kg
  • Graduations in mm
  • Equipped with a nylon shoulder strap for transport

Supplied with the Article

  • Illustrated instructions for assembly and use
  • Instructions and plan for local manufacture

Instructions for use

Children under 2 years of age or under 85 cm tall will be measured lying down; children over 2 years of age or taller than 85 cm will be measured standing up.

Two people are required to measure correctly.

MSF requirements

Robust and compact. Local manufacture is possible.
