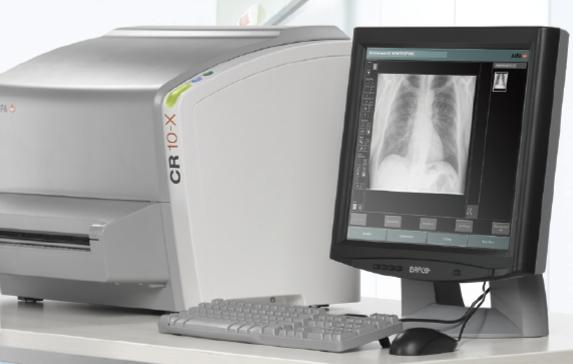

DIGITAL IMAGING SCANNER (Agfa CR10X) + accessories

Definition

Complete digital imaging receptor system.

A digital image receptor system (IRS) or computed radiography (CR) replaces the traditional system of using film and chemistry in a darkroom. The output is a digital image which can be viewed on a monitor, stored and sent like other digital images.

An IRS can be used with most x-ray machines. The IRS uses similar sized and shaped cassettes to the film screen system and fits into the same cassette holder on the x-ray unit.

Instead of film, inside the IRS cassettes there is a phosphor-coated screen which "stores" the image. When the cassette is inserted into the IRS machine, the screen is scanned and within a minute the image is available on the monitor for viewing. The image can be stored on a hard drive, CD, USB key or sent by e-mail. The screen is then automatically erased and can be reused thousands of times.

Specifications

Some restricted information has been hidden. Sign in to see this information

Quality standards

IEC 60601-1-3, 2008, edition 2.2, +A1 2013, A2 2021 Medical electrical equipment - Part 1-3: General requirements for basic safety and essential performance - Collateral Standard: Radiation protection in diagnostic X-ray equipment

Components

  • Agfa CR10X digitizer
  • Agfa desktop computer, keyboard, mouse NX software
  • 2MP high resolution monitor
  • 4 cassettes with phosphor screens 35 x 43 cm

Technical specifications

  • Single cassette feed
  • Cassette sizes: 35 x 43 cm (14 x 17") or 24 x 30 cm (10 x 12") with an adaptor
  • Throughput: 34 plates / hour
  • Display
    • LED status indicator
    • Status and error messages are displayed on the desktop computer
  • Greyscale resolution
    • Data acquisition: 20 bits / pixel
    • Output to processor: 16 bits / pixel
  • Spatial resolution: 10 pixels/mm
  • Images can be saved in JPEG or DICOM format
  • Power
    • autoranging external power supply (24V output)
    • input
      • 100-240V
      • 50/60 Hz
      • <2 A
  • Power consumption:
    • Digitizer machine: 200 VA
    • computer + monitor: 500 VA
  • Weight: 29 kg
  • Operating conditions: temperature between 15 and 35°C

To be Ordered Separately

For cleaning of the phosphor screen

  • Cleaning solution (EDIMDISC001): a minimum of 2 X 0.5l bot for the initial order is recommended
  • Cleaning wipes‌ (EDIMDISC002)

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

It is mandatory to protect the device with a double conversion UPS (see related articles below).

Must be used in a dust free environment.

Maintenance

No regular preventative maintenance of the CR reader is required.

The phosphor screens in the cassettes may be replaced separately to the cassettes if damaged.

MSF requirements

Robust compact design with good image quality that can be used with x-ray machines. The Agfa system replaces the previous Carestream Vita LE.
