FLOW SPLITTER paediatric (Sureflow)

Definition

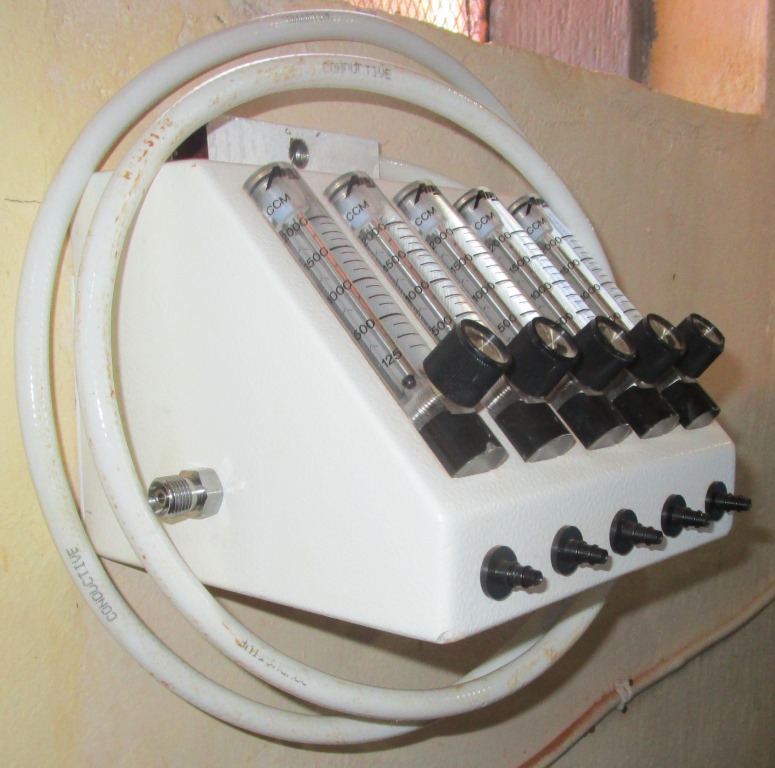

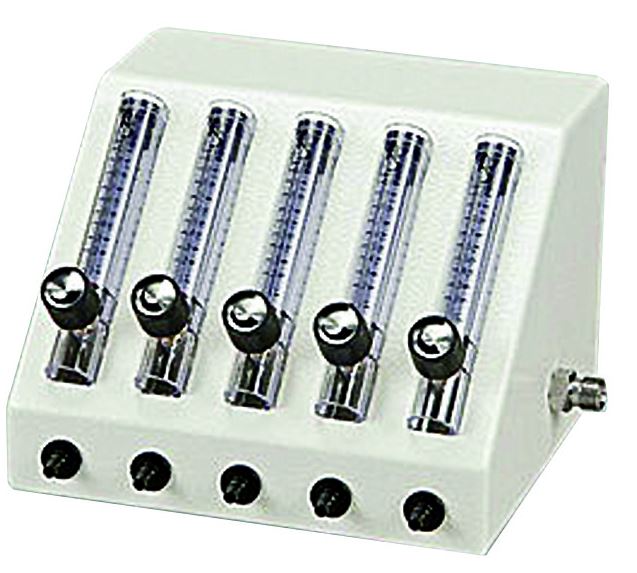

Flow station for administering medical-grade oxygen from 0 to 2 litres per minute to multiple patients/children (up to 5) from oxygen concentrator or other oxygen source. Can be best used with oxygen concentrator of minimum 10 litres/minute.

Specifications

Some restricted information has been hidden. Sign in to see this information

Components

  • 1 flow splitter
  • 1 oxygen hosing to connect the outlet of the oxygen concentrator

Technical specifications

5 flowmeters from 0 to 2 l/min ± 5%

Maximum Inlet Pressure 20 psig (pounds per square inch, gauge) =138 kPa (PSIG = Gauge Pressure relative to atmospheric pressure)

Operating conditions: 5° to 40°C

Dimensions

  • Ext. dimensions (HxWxD): 14.7 cm x 24.6 cm x 18.3 cm
  • Weight net: 1.49 kg
  • Shipping weight: 2.5 kg

Supplied with the Article

Oxygen hosing to connect the outlet of the oxygen concentrator

To be Ordered Separately

Don't forget to order the administration devices in sufficient quantities (see related articles):

  • Oxygen masks for children
  • Nasal oxygen cannula for children, neonates and prematures

Instructions for use

Read carefully the operating instructions before use.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Do not expose to open flames. Do not smoke near unit.

Maintenance

No serviceable parts inside. Do not open cover.

Use no oil or grease.

Storage

Temperature: -5° to 60°C

Waste management

Proper disposal of waste of electrical and electronic equipment required.

MSF requirements

Oxygen therapy is indicated in children during resuscitation and/or in a child with hypoxia of SpO2 < 94%.

The use of a paediatric flow splitter is recommended when there are multiple patients requiring oxygen therapy but there are a limited number of oxygen concentrators. The flow splitter can divide oxygen delivery from one oxygen concentrator to maximum 5 patients.

Humidification of oxygen is not always needed. For certain patients, under certain conditions it could be beneficial. See the MSF Nursing care procedures: Respiratory therapy chapter.
