(paediatric distributor Sureflow) HUMIDIFIERS KIT

STD EEMDCONA007

Valid Article

Former Code(s): EHOEZFR0587 EHOEZBE1267 EEMDCONA471 EHOEZNL0381
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist



(flow splitter Sureflow) SET OF ACCESSORIES + HUMIDIFIERS

Definition

Add-on set for the paediatric flow station/splitter (Sureflow) for administering medical-grade oxygen from 0 to 2 litres per minute to multiple patients/ children (up to 5) from oxygen concentrator or other oxygen source. Can be best used with oxygen concentrator of minimum 10 litres/minute.

Specifications

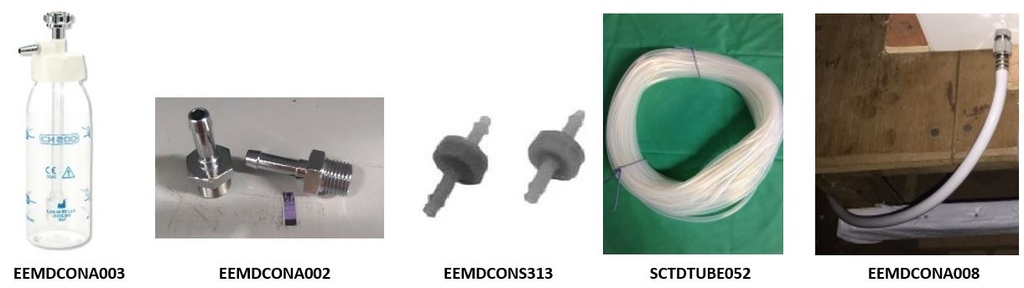

Components

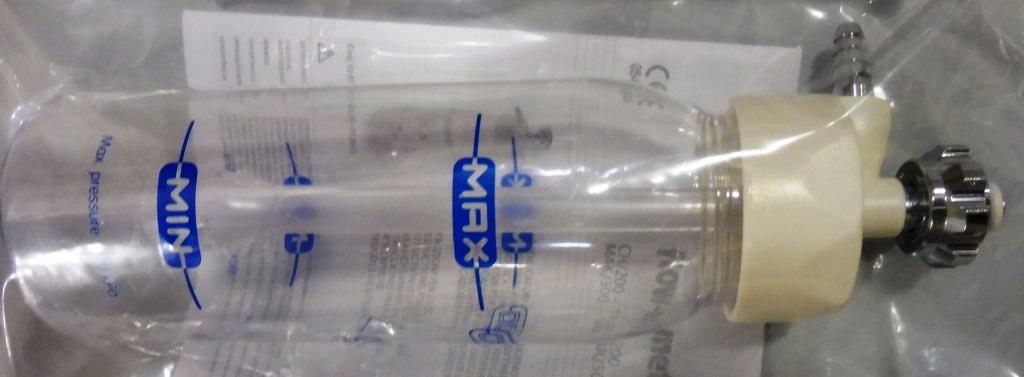

  • 5x humidifiers (Flowmeter TR200) EEMDCONA003

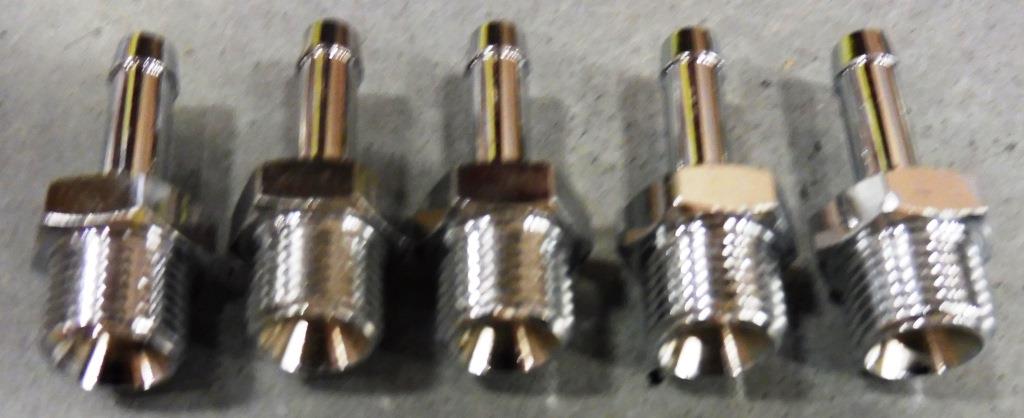

  • 10x male connector for humidifier EEMDCONA002

Supplied with the Article

  • 1x oxygen hose to connect the outlet of the oxygen concentrator: HO151-1 EEMDCONA008

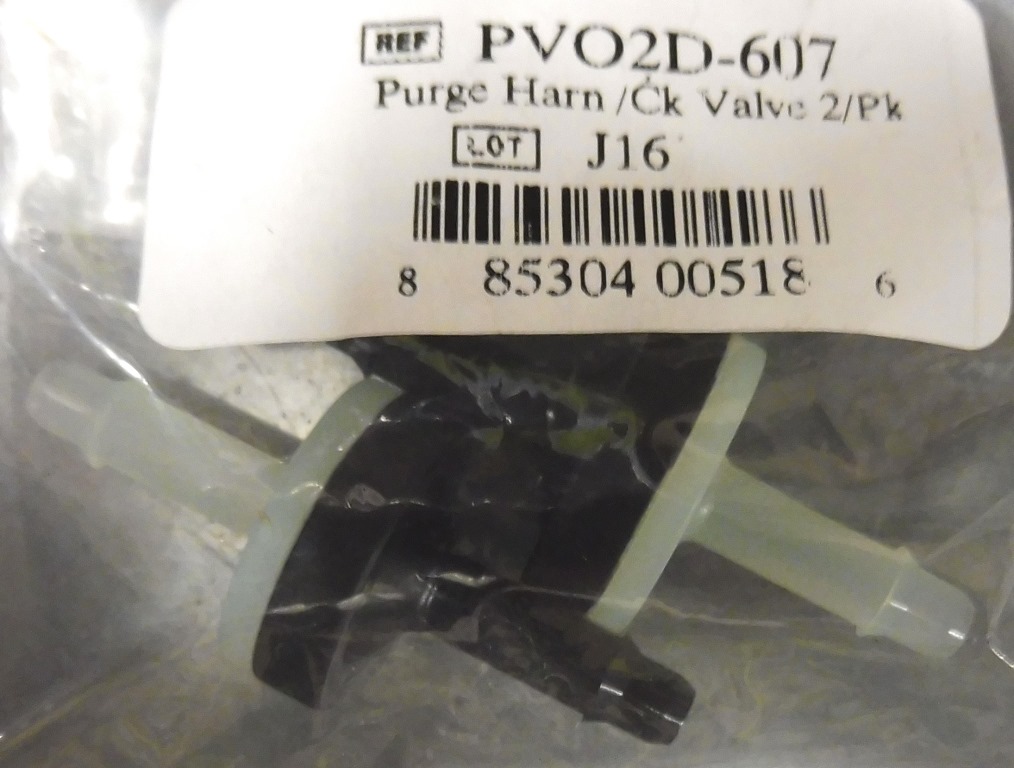

  • 15x 2 check valves: EEMDCONS313

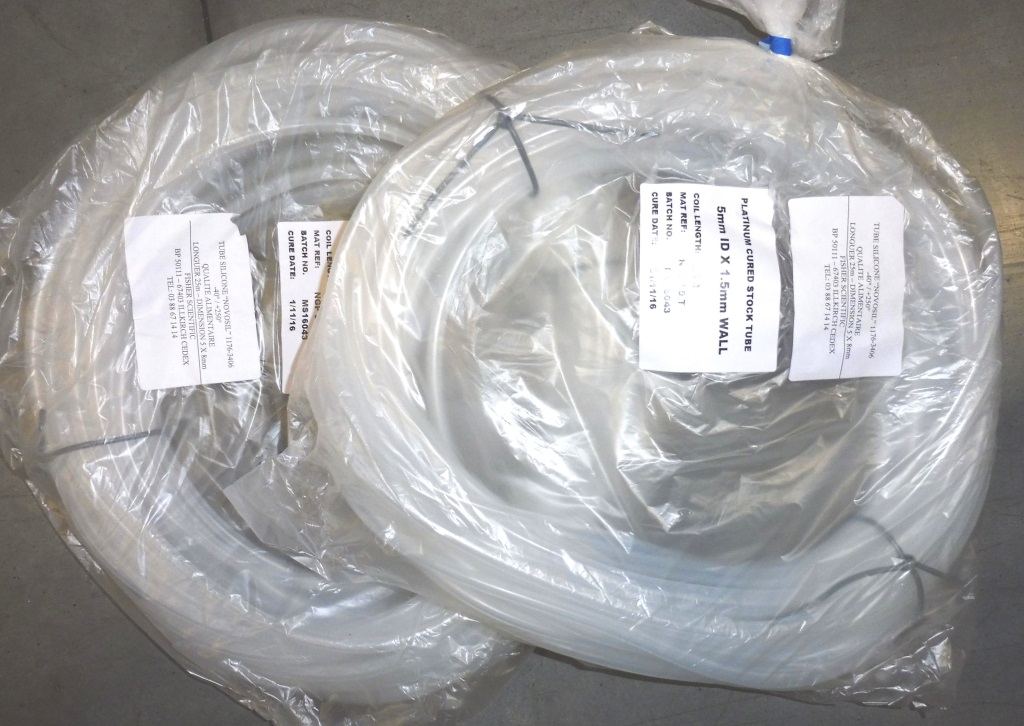

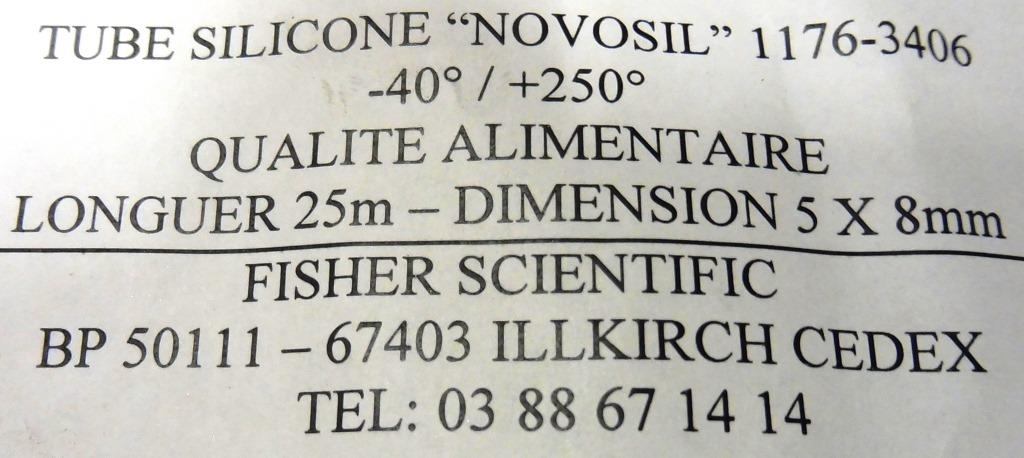

  • 1x silicone tubing of 25 m: SCTDTUBE052

To be Ordered Separately

  • The paediatric flow splitter EEMDCONE007
  • Airborne module for the oxygen concentrator KMEDMTUB1--
  • Administration devices in sufficient quantities:
    • Oxygen masks for children
    • Nasal oxygen cannula for children, neonates and prematures

Instructions for use

  • Place the flow splitter on a stable furniture surface or attach it to a wall near to the patients.
  • Connect the flowsplitter, via the hosepipe, to the Oxygen concentrator(s).
  • Cut the silicone tube in equal lengths: short and medium sizes.
  • Connect the exit of the flow splitter via the (short) silicone tubes, with the check valves. Make sure to connect the check valves in the same direction of the flow!
  • Connect the hose connectors to the humidifiers.
  • Connect the check valves with the (medium size) silicone tubes, with the hose connectors on the humidifiers.
  • Connect a patient tube between the humidifier and the patient.

Do not forget

To connect the 5 patients it is necessary to have a 10l concentrator or two of 5l connected from both sides; If you connect only 1 of 5l you can only give 5 litres in total (2 patients 2 litres, 5 patients + -1 litre…)

Always check the flow and concentration with the oxygen analyzer when installed: EIMTCONE1--.

Please consult the “Manual of nursing Care Procedures, MSF, 2020” available online via the Nursing care working Group sharepoint page.

Precautions for Use

  • Do not expose to open flames/ Do not smoke near unit
  • Maximum Inlet Pressure 20 psig (138 kPa)

Maintenance

Follow the sterilization protocols of the humidifier

Sterilize the silicone tubes and hose connectors; change the check valves each month (for TB cases it will be necessary to change the complete circuit after each patient)

Storage

Temperature: -5° to 60°C

MSF requirements

The add-on set does not include the flow splitter. It includes the humidifiers and other accessories needed for the administration of oxygen from 0 to 2 litres per minute to multiple children.

The humidification of the oxygen is recommended in case of prolonged administration in order to prevent the mucous membranes to dry out.
