ORTHOPEDIC TRACTION SYS ORT5000C for op. table Surginox
NST
EEMDTAOA301
Outdated Article
Account code:
60100
HS Code:
903300
Last Updated on:
11/12/2024, 19:15:20
Former
Code(s):
-X EHOETABO215 EHOEZBE0961 EHOEZNL0088 EEMDTAOA215 EEMDTAOA401
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

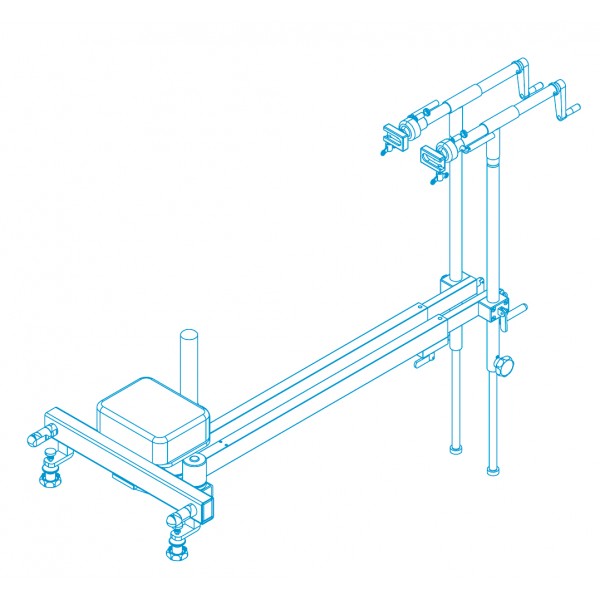

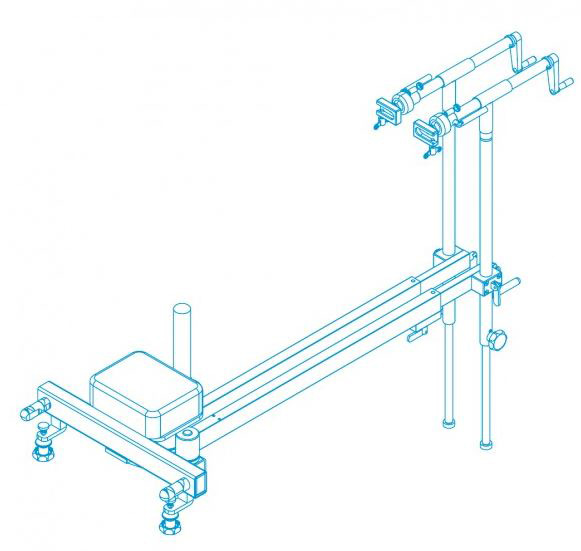

ORTHOPAEDIC TRACTION SYSTEM
Stopped and made NST in 2022 and replaced by the Medifa model (see related).
Definition

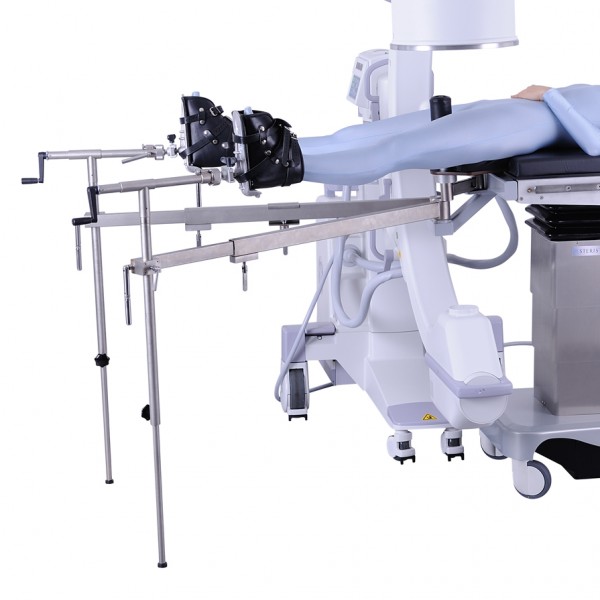

Orthopaedic extension that fits on the surgical operating table Surginox for orthopaedic surgery of lower limbs.
Specifications
Some restricted information has been hidden. Sign in
to see this information
Quality standards
EN IEC 60601-2-46, 2019, Medical electrical equipment - Part 2-46: Particular requirements for the basic safety and essential performance of operating tables
Components
It is composed of:
- 1 pelvic support
- 1 adjustable counter extension bar
- 2 traction bars each with a traction device
Technical specifications
- Weight : 55 kg
- Patient max.: 135 kg
- Overall width: 52 cm
- Overall length: +/- 200 cm
- Overall height: +/- 90 cm
- Min/max height table top: 40 cm to 130 cm
- Abduction/Adduction : 120°/ 40°
- Tractor stroke: 20 cm
- Extension armstroke: 54 cm
Some restricted information has been hidden. Sign in
to see this information
