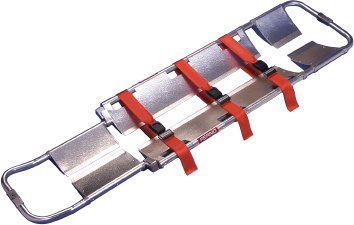

SCOOP STRETCHER, with straps

STD EHOESTRT3S-

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
V08050103 - Emergency and traumatology stretchers
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list



Add Kit To Wishlist



SCOOP STRETCHER

Definition

The scoop stretcher is a device used specifically for moving injured people. It has a structure that can be split vertically into two parts, with shaped 'blades' which can be brought together underneath a patient. The two halves are placed separately on either side of the patient, and then brought together until securing clips at the top and bottom both engage.

Scoop stretchers reduce the chance of undesirable movement of injured areas during transfer of a trauma patient, as they maintain the patient in a supine alignment with minimal movements during transfer to a stretcher, vacuum mattress or long spine board.

Specifications

Quality standards

EN 1865-1, 2010, +A1 2015 Patient handling equipment used in road ambulances. Part 1: General stretcher systems and patient handling equipment

Technical specifications

  • material: aluminium or high density polyethylene
  • 2 hinged interlocking pieces allowing central opening
  • head section recessed: to maintain proper cervical alignment
  • 3 straps
  • different handles on both sides
  • maximum load: 150 kg
  • adjustable length: +/- 165 to 202 cm and foldable (120 cm) for storage
  • width: +/- 43 cm
  • weigth: +/- 7 kg
  • washable: resistant to disinfection

Instructions for use

Designed to lift up a person with minimal movement due to the central opening (with double locking system) allowing to separate the 2 longitudinal parts.

The scoop stretcher can be operated with only two team members, although with three it is easier to assure head and neck immobilization.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Make sure the two halves of the scoop stretcher are well locked before lifting the patient.

A scoop is a hard surface and gets quickly uncomfortable for a patient:

  • do not leave the patient longer on it than necessary
  • choose another equipment in case of transport

Maintenance

After each use the stretcher must be cleaned and disinfected with a detergent/disinfectant solution for surfaces /non-invasive medical equipment. Prepare use-solution in concentration required. Always read the label and product information before use. Do not mix the with other products. Make sure to wet surfaces completely, use a wipe or towel, keep them wet for the whole exposure time.

Some restricted information has been hidden. Sign in to see this information
Some restricted information has been hidden. Sign in to see this information

ISO 7010 — Graphical symbols -- Safety colours and safety signs -- Registered safety signs

  • Green, square or triangular
  • E013: to indicate the location of a stretcher
