COUNTING CHAMBER NEUBAUER, improved, double grid

https://unicat.msf.org/cat/product/13060
STD ELABCOCN5D-

Valid Article

Former Code(s): ELAECOCN5D-
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
W020201 - Cell count
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

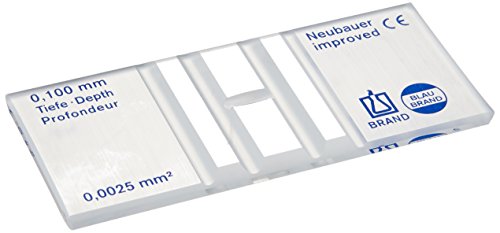

COUNTING CHAMBER NEUBAUER

Definition

Slide designed by Neubauer for counting cells in biological fluids.

Synonym

Neubauer haemacytometer.

Specifications

Material

Glass

Technical specifications

  • Meets the European standards for the calibrated class (optical size, high precision grid, optimal visibility)
  • Improved model: 5 x 5 (bright line)
  • Depth: 0.1 mm
  • Surface 0.0025mm2
  • Volume: 0.9 mm3

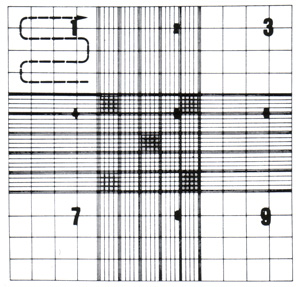

  • Double engraved grid
  • Supplied with 2 glass planed cover slides (20 x 26 mm)
  • Reusable

Packaging & Labelling

Unit packaging.

(Cf Introduction: Packaging and labelling)

Instructions for use

The Neubauer counting chamber is used to count cells in a biological fluid by observing through a microscope a calibrated grid of which the exact dimensions (including depth and volume) are known. A simple calculation allows the number of cells per ml or another volume unit to be determined.

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

MSF requirements

This chamber is the most frequently used. WHO standard for various counting techniques: 5x5 grid.
