CLINICAL CHEMISTRY ANALYSER (NycoCard II)
Definition

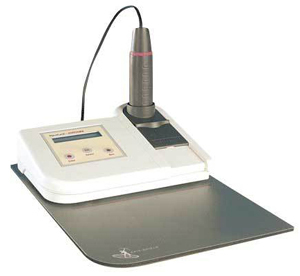

The 'NycoCard Reader II' system is a hand-held instrument for quantitative determination of CRP (C-reactive protein).
Note: other parameters (D-Dimer, U-Albumin and HbA1c) can be determined on the NycoCard Reader II system, requiring other plastic devices. These have not been validated.
The recommended use is patient management in orthopedic surgical programmes.
Specifications
Reader for quantitative determination of CRP that uses specific reagent kits (CRP NycoCard tests) to be ordered separately.
Technical specifications
- Reader consists of 2 units: instrument box & reader pen
- The coloured responses are measured by spectral reflectance in three parts of the visible spectrum.
- Reading per test is 30 s to 1 min
- Storage data: 60 measurements with date, time and patient/sample identification, non volatile storage
- Battery powered
- Supplied with
- 3 rechargeable batteries (size AA)
- 3 battery clips
- charger for batteries (8-18 hours)
- 10 calibration devices
- 10 pen tips
- 10 pen rings
- 1 pad
- 1 instruction manual + warranty card
- No integrated printer
Dimensions
- Instrument box: 200 x 170 x 70 mm
- Pen: L: 144 mm, D: 29.5 mm
- Weight: 540 g (incl. batteries)
To be Ordered Separately
Tests devices and control solutions should be ordered separately
Instructions for use
Follow the instruction manual.
Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.
https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx
For offline access, contact your laboratory advisor.
Maintenance
The reader pen has three consumables; 10 units of each are supplied with the device.
- calibration device ref. 1047782 x10 [ELAECCHC311]
- pen tip ref. 1047780 x10 [ELAECCHC312]
- pen ring ref. 1047781 x10 [ELAECCHC313]
The pen tip, the pen ring and the calibration device of the NycoCard II Reader need to be exchanged on a yearly basis or when the device is dirty or damaged or if an error message related to these accessories occurs.
