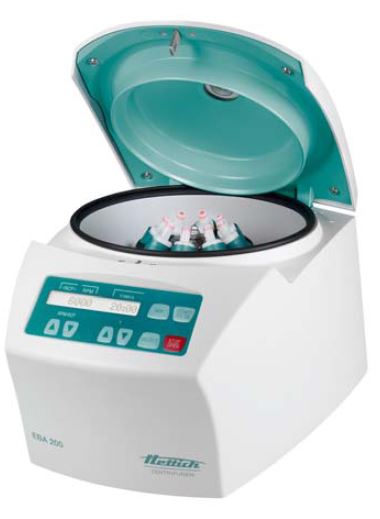

CENTRIFUGE, electrical (Hettich EBA 200)

Definition

Rapid rotating apparatus, used to centrifuge biological fluids (blood, cerebrospinal fluid, urine).

The model EBA 200 replaces the EBA 20.

Specifications

Centrifuge for conical centrifuge tubes with cap/ plug (15ml)

Some restricted information has been hidden. Sign in to see this information

Quality standards

  • EN IEC 61010-2-020, 2017, edition 3, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-020: Particular requirements for laboratory centrifuges
  • EN 12547, 2014, Centrifuges - Common safety requirements

Material

Plastic body, steel base

Technical specifications

  • Model for 8 tubes of 15 ml
  • Variable speed: 200 - 6,000 rpm (with intervals of 10 rpm)
  • RCF (Relative Centrifugal Force): max. 3,461 x g
  • Runtime adjustable from 1 to 99 minutes, (adjustable in steps of 1 minute) and adjustable from 1 to 59 s (in steps of 1 second)
  • Fixed angle rotor for 8 tubes (15 ml) of max. 120 mm long and max. 17 mm in Ø
  • Power supply: 200 - 240 V AC / 50-60 Hz
  • Consumption: 0.28 A

Dimensions

  • Width x Depth x Heigth: 261 x 353 x 228 mm
  • Weight: approx. 9 kg

Supplied with the Article

The centrifuge is delivered with angle rotor (8 x 15ml) and the items below:

  • 1 connecting cable
  • 2 fuses (type 1800 Fuse T 1.6 AH/250V)
  • 1 hex head wrench
  • 1 operating instructions
  • 1 information sheet: transport securing device
  • 1 information sheet: emergency unlocking

Instructions for use

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.

Maintenance

Fuses must be replaced as required (ref: E891).

Storage

  • temperature: -20°C to + 60°C
  • relative humidity: 20% to 80% non-condensing

MSF requirements

Basic model. Essential in a reference laboratory.

Not suitable for tuberculosis culture which require a biosafety centrifuge.
