INCUBATOR CO2 (Thermo Forma 3111) 184l, 230V 50-60Hz
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

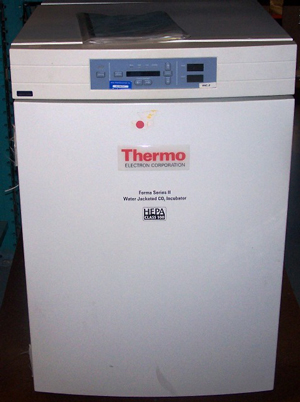

INCUBATOR CO2, 184 l (Thermo Forma 3111)
Reserved for TB culture programmes.
Definition
Device for controlling the temperature, humidity, CO2 level and other conditions under which a microbiological culture is being grown.
Specifications

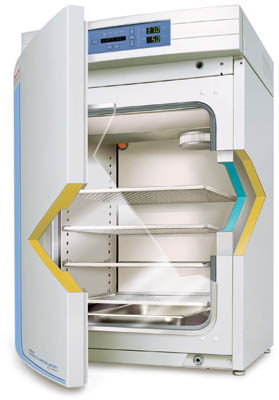

Thermo Scientific™ Forma™ Series II Water-Jacketed CO2 Incubator provides precise CO2 control, unsurpassed temperature stability and superior parameter recovery characteristics, with continuous contamination control technology.
It provides an environment for the growth of microbiological samples or mammalian cells, IVF and other regulated cell therapy applications.
Technical specifications
- Inner door removable and cleanable
- Interior volume: 184.1 liters
- Net weight/ operational: 120.2 /165.6 Kg
- Shipping weight: 147 Kg
- Control: ± 0.1°C
- Range: 5°C above the ambient temperature up to 55°C
- Temperature uniformity: ± 0.2 °C at 37°C
- CO2 range: 0-20% (readability 0.1%)
- O2 range: 1-20%
- Chamber relative humidity: ambient to 95% at 37°C
- Humidity pan: 3 liters standard
- Number of shelves standard/max: 4-16
- Shelved dimensions W x D: 470 x 470 mm, stainless stell, perforated, 0.22 m2
- Power supply: 230V/50-60Hz
Dimensions
- Internal dimensions H x W x D: 541 x 681 x 508 mm
- External dimensions H x W x D: 668 x 1003 x 635 mm
Supplied with the Article
Ensure that the incubator is supplied with the following accessories:
- Build-in gas guard to monitor CO2 that automatically switch from one cylinder to the other, when the supply is exhausted (Ref. 190640)
- Roller base (advisable, Ref. 190647)
- Replacement HEPA filters (Ref. 760175)
To be Ordered Separately
The incubator must be ordered with automatic CO2 cylinder switchover system (MCO-21GC).
CO2 incubators require two gas bottles, a manometer and, if not provided by the supplier, a switchover system to change the gas supply from one bottle to the other.
Optional accessories:
- UV lamp system kit (MCO-18UVS)
- Roller base (MCO-18RB)
Instructions for use
Precautions for Use
Secure all biomedical electrical devices in the laboratory. Contact your biomedical referent to define the best option.
Failing that, use a UPS double conversion for the electrical protection of the apparatus (see related articles below).
If the laboratory is not provided with air-conditioning system, avoid placing the incubator in proximity of an open window, to avoid contamination in the chamber.
MSF requirements
To incubate at 37°C in 5% CO2 environment inoculated Middlebrook 7H11 media plates for Thin Layer Agar Technique, to allow mycobacterial growth.
