OTOSCOPE, halogen + SPECULA
Valid Article
DIRECT OTOSCOPE
Definition

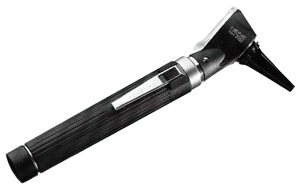

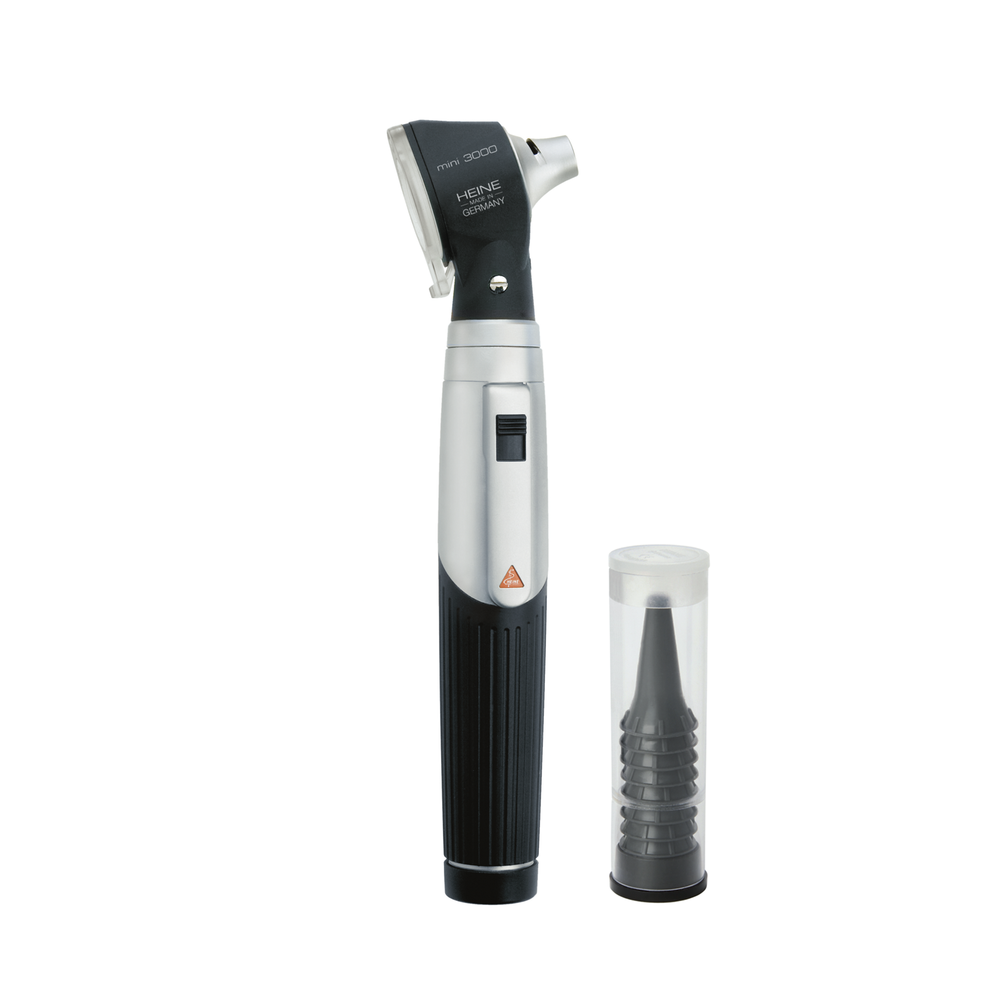

A battery-powered, hand-held, device primarily designed for examining the outer ear canal and tympanic membrane by direct viewing through the ear opening during ENT treatments.
The device consists of a handle that contains the batteries, a built-in light to illuminate the interior of the ear canal, and a detachable cone-shaped tube (the speculum) that is inserted in the ear canal. Supplemental devices (e.g., additional specula, spare light bulbs) may be included.
This is a reusable device.
Specifications
Technical specifications
- Handle, for 2 AA batteries
- Screw-on head
- Pivoting observation window, with triple enlargement, giving an excellent image
- Halogen bulb 2.5V (HEINE XHL110, Riester HL10590)
- Set of minimum 4 reusable specula
- min 2 different sizes: adult and pediatric (Ø: going from 2/2.5 mm to 5 mm)
- painless and non traumatizing insertion
- solid fixation onto the otoscope
- autoclavable
- Supplied with 1 spare bulb
Packaging & Labelling
Delivered in a soft (nylon) case with instructions for use.
Instructions for use
Do not forget to remove the batteries after use.
Always put the complete otoscope back in its case to prevent damage.
Note
- Speculums are interchangeable between the 2 brands (Heine and Riester): same code for ordering
- Bulbs are different between the 2 brands: 1 code for Heine spare bulb, 1 code for Riester spare bulb
Maintenance
The specula must be cleaned and disinfected after each examination.
