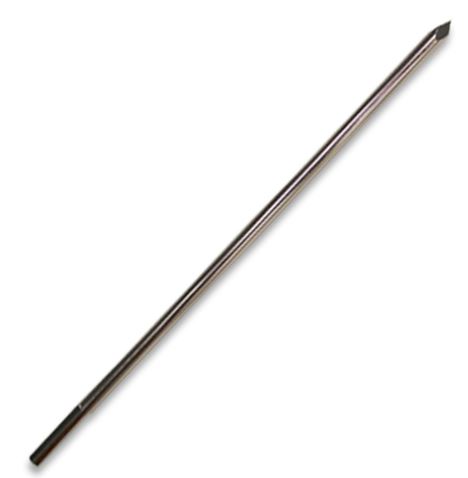

NAIL, STEINMANN, trocar point, 21 cm, Ø 4 mm 76-44-21
Valid Article
Nail, Steinmann
Definition
The Steinmann Pin is a metal rod for the internal fixation of fractures commonly used in orthopedic surgery. It is similar to K-Wire but with larger diameters. There is no standardized definition of diameter cut off.
Many wire terms are used interchangeably, from mandrel to guide wire to k-wire to Steinmann Pin to Intramedullary pin to fixation pin. Most of the time, there are very subtle differences between the names, depending on design, diameter, threads, usage and the context of the speaker.
Specifications
Quality Standards Comment
ISO 5832-1:2016 Part 1: Wrought stainless steel - specifies the characteristics of, and corresponding test methods for, wrought stainless steel for use in the manufacture of surgical implants.
Technical specifications
- Proximal end: trocar point
- Distal end: square shaft end
- Diameter: 4 mm
- Length: 15, 21 or 26 cm
- Material: austenitic steel, cold hammered (= worked at low temperature) to give it greater hardness
Instructions for use
To be used with the Boehler's wire traction bow.
Often used for temporary osteosynthesis until the definitive reconstruction can be made using internal fixation procedures.
Check the quality of the trocar point.
