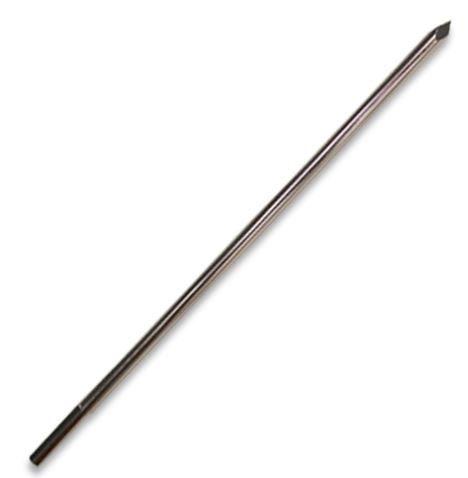

NAIL, STEINMANN, trocar point, 26 cm, Ø 4 mm 76-17-79

https://unicat.msf.org/cat/product/14135
STD ESURNAIS26B

Valid Article

Former Code(s): -X
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
P09120299 - Osteosynthesis nails - other
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIb
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

Nail, Steinmann

Definition

The Steinmann Pin is a metal rod for the internal fixation of fractures commonly used in orthopedic surgery. It is similar to K-Wire but with larger diameters. There is no standardized definition of diameter cut off.

Many wire terms are used interchangeably, from mandrel to guide wire to k-wire to Steinmann Pin to Intramedullary pin to fixation pin. Most of the time, there are very subtle differences between the names, depending on design, diameter, threads, usage and the context of the speaker.

Specifications

Quality Standards Comment

ISO 5832-1:2016 Part 1: Wrought stainless steel - specifies the characteristics of, and corresponding test methods for, wrought stainless steel for use in the manufacture of surgical implants.

Technical specifications

  • Proximal end: trocar point
  • Distal end: square shaft end
  • Diameter: 4 mm
  • Length: 15, 21 or 26 cm
  • Material: austenitic steel, cold hammered (= worked at low temperature) to give it greater hardness

Instructions for use

To be used with the Boehler's wire traction bow.

Often used for temporary osteosynthesis until the definitive reconstruction can be made using internal fixation procedures.

Check the quality of the trocar point.
