KIT VHF, TRANSCEIVER, mobile (Icom ICF5061)
STD
KCOMKVHFM50
Valid Article
Account code:
61160
Last Updated on:
02/05/2024, 22:17:41
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
KIT VHF, TRANSCEIVER, mobile (ICF5061)
Definition
VHF radio kit, wide band, for mobile installation, intended for short-distance communications.
Indications
Includes 1 transceiver and 1 mobile antenna.
For the specifications, see the logistic catalogue.
VHF transceiver:

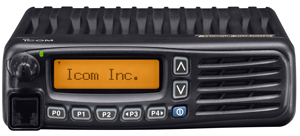

CLOSED ARTICLE: Icom IC-F5061
VHF antenna:
OPEN ARTICLE
- Mobile monopole 5/8 wave whip antenna
- Frequency range: 146 - 174 MHz
- Length: 138 cm
Instructions for use
Always inquire about local authorizations to be obtained.
Wide band, duplex mode, and front panel programming allow the communication with other operators (except if they use UHF equipment), and the use of a repeater.
Radios are pre-programmed on standard frequencies, for immediate use.
NEVER transmit without antenna.
For special situations (longer distance, repeater...), please contact your technical department.
Some restricted information has been hidden. Sign in
