VHF TRANSCEIVER (Icom IC-F5061) 136-174MHz

https://unicat.msf.org/cat/product/16464
STD PCOMVHFEI50T

Valid Article

Former Code(s): PCOMTRVI50-
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

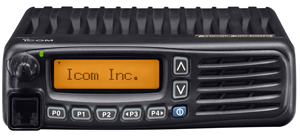

VHF TRANSCEIVER (Icom IC-F5061)

Definition

Wide-band VHF radio, base station and mobile, intended for short-distance voice communications.

Specifications

  • Supplied with power cable
  • Supplied with Icom HM-152 microphone
  • With CTCSS option (audio subtone)
  • Frequency range: 136 - 174 MHz
  • Programmable channels: 512 channels / 128 zones
  • Programmable channel increment: 12.5/15/25/30 kHz
  • Duplex mode, programmable frequency interval
  • Runs on 12 V DC battery
  • Consumption:
    • Tx: 14 A
    • Rx: 1.2 A
    • Standby: 0.3 A
  • Power output: 50 W maximum
  • Antenna impedance: 50 ohms, unbalanced
Some restricted information has been hidden. Sign in to see this information

Instructions for use

Always enquire about local authorizations to be obtained.

Wide-band, duplex mode and keypad programming enable communication with other operators (except if they are using UHF equipment), and the use of a repeater.

Radios are preset to standard frequencies for immediate use.

The antenna of the base station should be erected as high as possible. Base station range depends on antenna height; the maximum is 30 km. The base station should ideally be placed in the middle of the site, with a permanent operator responsible for relaying messages, in order to extend the communication network.

For special situations (longer distances, repeaters etc.), consult your technical department.
