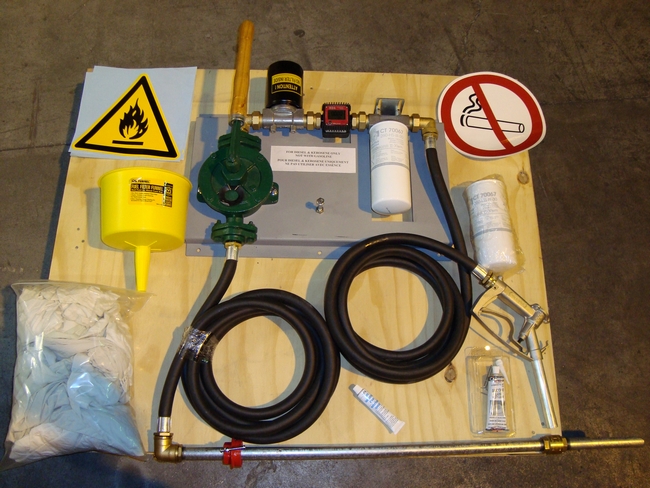

KIT, MANUAL FUEL DELIVERY and FILTRATION
Definition
Portable manual pump with hoses, nozzle and water separator filter designed to pump fuel from 200 litre drums or a tank.
Used for refuelling vehicles.
Indications
- Suction pipe: 1 m metal 1" tube with adapter for 2" drum outlet
- Pump: suction rotating cast iron pump
- Pump yield: ± 30-40 litre/min
- Pump exit: gooseneck 3/4 "
- Flexible fuel delivery hose, 4 m, 3/4 "
- Counter
Instructions for use
Intended for all missions with a small stock of fuel in 200 litre drums. Compatible for all types of fuel, especially petrol and diesel. This type of installation is convenient for small volumes and/or short duration. If not, a more sizable installation with tank and electrical fuel distribution pump, allows for a better management with regards to quality and follow-up.
It is recommended to have one pump for each type of fuel.
Choose a colour for each type of fuel and mark all the related articles (jerrycans, drums, pumps...).
- At the reception of goods, check your drums with the water detecting paste.
- Before pumping, the drum or tank should rest for 3 days to allow the fuel to settle.
Filter the bottom of a drum with the water retention filter funnel.
