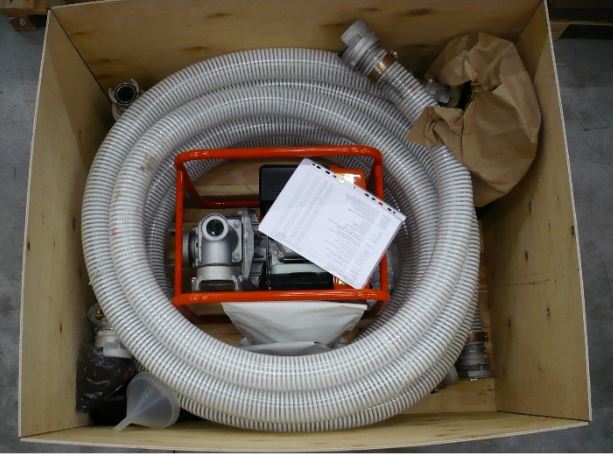

KIT, MOTOR PUMP, DIESEL, 130 m³/h max, 42 m max

Definition

High yield surface centrifugal pump, delivering maximum 42 metre head and 130m³/h maximum flow. Powered by a diesel engine. All mounted in a metallic frame.

Indications

MOTOR PUMP

  • Guillemin coupling 4" (ND100) at inlet and outlet
  • Elbow 90º for horizontal outlet
  • Pump + engine mounted on a frame
  • Maximum suction head: 7 m
  • Maximum total head: 42 m
  • Maximum yield: 130 m3/h

KIT

The kit contains all the accessories and consumables required for the functioning and maintenance of the pump. Its exact composition could differ according to the model of pump which is supplied.

Instructions for use

To be used for pumping clear water only (turbid water would damage the pump).

Kit supplied with user manual.

Check that the performance curve of the pump suits your situation:

  • Fill the oil pan prior to first use and check the level daily.
  • Check the fuel quality (no water or impurities). Use the funnel with water retention filter to fill the tank.
  • For the suction, use only the long spiral hose and strainer supplied in the kit.
  • On the discharge side, the outlet assemblies (short spiral hose + gate valve and non-return valve) must be connected in between the pump and the pipeline to ease the disconnection of the pump and to prevent water hammering.
  • Prime the pump with water before starting.
  • Train the staff in proper operation, follow-up and maintenance of the pump.
  • Maintenance: every 100 hours. Fill in the maintenance logbook.

For more detailed information and instructions see also the Owner's manual (integrated in kit) and "Public Health Engineering in Precarious Situations", MSF, 2nd edition, 2010:

  • T.B. 2.25 Centrifugal pumps
  • T.B. 2.28 Motor pump kit installation
    Some restricted information has been hidden. Sign in to see this information
    [CWATBANDHC1] BAND CLIP high pressure, Ø 104-112mm, simple tightening CWATBANDHC1 STD BAND CLIP high pressure, Ø 104-112mm, simple tightening 8 mandatory
    [CWATCBVAFT4IF] NON-RETURN VALVE flapping, brass, 4", FxF threaded CWATCBVAFT4IF STD NON-RETURN VALVE flapping, brass, 4", FxF threaded 1 mandatory
    [CWATCCPLTTIM] CAP threaded, cast iron, ¾", male CWATCCPLTTIM STD CAP threaded, cast iron, ¾", male 1 mandatory
    [CWATCGCOFD4IF] FLANGE COUPLING, cast iron, 4", NP16 CWATCGCOFD4IF STD FLANGE COUPLING, cast iron, 4", NP16 2 mandatory
    [CWATCGCOFD4IG] (flange coupling 4") GASKET CWATCGCOFD4IG STD (flange coupling 4") GASKET 6 mandatory
    [CWATCGCOL14IM] LONG TUBE COUPLING threaded, galvanized, Ø 4", 100mm, MxM CWATCGCOL14IM STD LONG TUBE COUPLING threaded, galvanized, Ø 4", 100mm, MxM 2 mandatory
    [CWATCGELT44IX] ELBOW COUPLING 45° threaded, galvanized, 4", FxM CWATCGELT44IX STD ELBOW COUPLING 45° threaded, galvanized, 4", FxM 1 mandatory
    [CWATCGELT94IX] ELBOW COUPLING 90° threaded, galvanized, 4", FxM CWATCGELT94IX STD ELBOW COUPLING 90° threaded, galvanized, 4", FxM 1 mandatory
    [CWATCSEM43IL] REDUCER HALF-COUPLING symmetrical, 4"-3" + lock CWATCSEM43IL STD REDUCER HALF-COUPLING symmetrical, 4"-3" + lock 1 mandatory
    [CWATCSEMG4IL] SYMMETRICAL HALF-COUPLING, 4" ND100, grooved Ø 100 + lock CWATCSEMG4IL STD SYMMETRICAL HALF-COUPLING, 4" ND100, grooved Ø 100 + lock 6 mandatory
    [CWATCSEMP4IC] (symmetrical half-coupling 4") PLUG WITH CHAIN CWATCSEMP4IC STD (symmetrical half-coupling 4") PLUG WITH CHAIN 1 mandatory
    [CWATCSEMT4I0F] SYMM. HALF COUPLING, 4" ND100, female threaded, w/o lock CWATCSEMT4I0F STD SYMM. HALF COUPLING, 4" ND100, female threaded, w/o lock 1 mandatory
    [CWATCSEMT4I0M] SYMM. HALF-COUPLING, 4" ND100, male threaded, w/o lock CWATCSEMT4I0M STD SYMM. HALF-COUPLING, 4" ND100, male threaded, w/o lock 1 mandatory
    [CWATCSEMY4IL] (sym 1/2 coupling) Y-COUPLING, 4", ND100 x 3 + lock CWATCSEMY4IL STD (sym 1/2 coupling) Y-COUPLING, 4", ND100 x 3 + lock 1 mandatory
    [CWATHOSS4PM4-] SPIRAL HOSE suction/delivery, 4", NP4, per meter CWATHOSS4PM4- STD SPIRAL HOSE suction/delivery, 4", NP4, per meter 50 mandatory
    [CWATPUMALNV4F] (sludge pump) BUTTERFLY VALVE flanged, 4" ND100 CWATPUMALNV4F STD (sludge pump) BUTTERFLY VALVE flanged, 4" ND100 1 mandatory
    [CWATPUMED13] MOTOR PUMP diesel, high yield, 130m³/h max. 42m CWATPUMED13 STD MOTOR PUMP diesel, high yield, 130m³/h max. 42m 1 mandatory
    [CWATSEALTT9] TAPE (Teflon) 19mmx15m, 0.2mm thick, roll CWATSEALTT9 STD TAPE (Teflon) 19mmx15m, 0.2mm thick, roll 8 mandatory
    [CWATSTRA4S-] STRAINER simple, 4" ND100 CWATSTRA4S- STD STRAINER simple, 4" ND100 1 mandatory
    [CWATSTRA4S8] STRAINER simple, 4" ND100 + spiral hose 8m + couplings CWATSTRA4S8 STD STRAINER simple, 4" ND100 + spiral hose 8m + couplings 1 mandatory
    [CWATTOOLH23] HOOK SPANNER, 2"-3", for Guillemin coupling CWATTOOLH23 STD HOOK SPANNER, 2"-3", for Guillemin coupling 2 mandatory
    [PHDWBOLT16H70] BOLT, black, M16x70mm, hexagonal head PHDWBOLT16H70 STD BOLT, black, M16x70mm, hexagonal head 6 mandatory
    [PHDWBOLT16H90] BOLT, black, M16x90mm, hexagonal head PHDWBOLT16H90 STD BOLT, black, M16x90mm, hexagonal head 6 mandatory
    [PTOOMEASVHC] HOUR COUNTER vibration, with button battery PTOOMEASVHC STD HOUR COUNTER vibration, with button battery 1 mandatory
    [PTOOSTORBSVT] TOOLBAG soft, for vehicle PTOOSTORBSVT STD TOOLBAG soft, for vehicle 1 mandatory
    [PTOOWRENA044] ADJUSTABLE WRENCH, chromed, 15", max 44mm, 380mm, 113A.15C PTOOWRENA044 STD ADJUSTABLE WRENCH, chromed, 15", max 44mm, 380mm, 113A.15C 1 mandatory
    [PTOOWRENC013] COMBINATION WRENCH 12 point, 13mm, metric, 440.13 PTOOWRENC013 STD COMBINATION WRENCH 12 point, 13mm, metric, 440.13 1 mandatory
    [PTOOWRENC017] COMBINATION WRENCH 12 point, 17mm, metric, 440.17 PTOOWRENC017 STD COMBINATION WRENCH 12 point, 17mm, metric, 440.17 1 mandatory
    [PTOOWRENC024] COMBINATION WRENCH 12 point, 24mm, metric, 440.24 PTOOWRENC024 STD COMBINATION WRENCH 12 point, 24mm, metric, 440.24 1 mandatory
    [TVEAFUNN21W] FUNNEL + FILTER water separator, Ø 216mmx250mm TVEAFUNN21W STD FUNNEL + FILTER water separator, Ø 216mmx250mm 1 mandatory
    [TVEAJERR2MR] JERRYCAN, metal, 20l, for fuel TVEAJERR2MR STD JERRYCAN, metal, 20l, for fuel 1 mandatory
    [TVECOILE5405] ENGINE OIL 15W40 API SJ/CF, 5l, petrol / diesel, can TVECOILE5405 STD ENGINE OIL 15W40 API SJ/CF, 5l, petrol / diesel, can 2 mandatory
    [YLOM2175-044] FILTER, OIL, 2175 044,for Lombardini engine 9LD YLOM2175-044 NST FILTER, OIL, 2175 044,for Lombardini engine 9LD 6 mandatory
    [YLOM2175-046] FILTER, GASOIL, 2175 046, for Lombardini engine 9LD YLOM2175-046 NST FILTER, GASOIL, 2175 046, for Lombardini engine 9LD 6 mandatory
    [YLOM2175-130] GASKET, priming plug, Lombardini diesel motor pump, 130m3 YLOM2175-130 NSL GASKET, priming plug, Lombardini diesel motor pump, 130m3 4 mandatory
