MODULE, ADDITIONAL HOSES + couplings, 2"

Definition

Additional 2" hoses for pump and water tank kits, used to transport water during emergencies and short-term programs.

Can also be used in combination with the "module, water distribution" (see related articles below) to set up a small emergency distribution network.

Indications

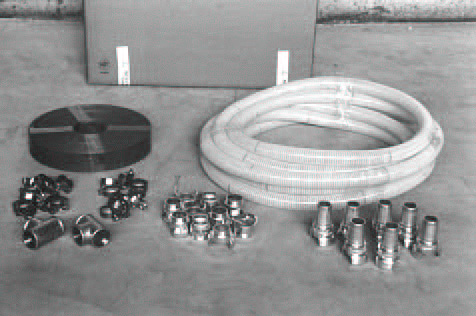

The module contains 75 meters (25 m spiral, 50 m flat) of food grade quality, 2" DN50, flexible hose, with separate Guillemin couplings and T-couplings.

Instructions for use

Particularly useful when pumping, storage, treatment and distribution are performed at considerable distances from each other.

For the suction, use only the spiral hose which is supplied in the kit.

Before ordering, make a drawing of the water distribution system and estimate the length of hose required.

Hoses are sensitive to punctures, shocks and sunlight. All spiral hoses should be buried, or at least laid in protective trenches. Flat hoses can also be laid in narrow shallow protective trenches.

For long term use, PE or even PVC pipes are a better choice as they can be buried and protected more easily.

For more detailed information and instructions see also "Public Health Engineering in Precarious Situations", MSF, 2nd edition, 2010:

T.B. 2.30 Pipes for potable water supply
T.B. 2.31 Head losses
T.B. 2.32 Calculation of a simple pipeline
T.B. 2.33 Pipe installation,

as well as the Manual installation of Guillemin couplings (MSF).

Some restricted information has been hidden. Sign in to see this information

Select field(s) to export to Excel
Image	Code
Label	Account
Quantity
Status	Standardisation
HS Code	URL

OC subscriptions: included in supply or field order tools (e.g. UniField)	OCA OCB OCBA OCG OCP
SC subscriptions: included in supply or field tools	MSF Supply MSF Log APU Casier Départ MSFSK
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)	OCA OCB OCBA OCG OCP

CWATASSYH02	STD	ASSEMBLY T-coupling, 2" + half-couplings + lock	2	mandatory
CWATASSYV02	STD	ASSEMBLY gate valve, 2" + couplings + lock	2	mandatory
CWATBANDH55	STD	BAND CLIP high pressure, Ø 51-55mm, simple tightening	8	mandatory
CWATBANDH56	STD	BAND CLIP high pressure, Ø 56-59mm, simple tightening	8	mandatory
CWATCSEM02IG	STD	(symmetrical half-coupling) GASKET, 2"	8	mandatory
CWATCSEMG2IL	STD	SYMMETRICAL HALF-COUPLING, 2", grooved + lock	8	mandatory
CWATHOFD2PM2-	STD	HOSE flat, 2", for delivery, per metre	50	mandatory
CWATHOSS2PM6-	STD	SPIRAL HOSE suction/delivery, 2", NP6, per metre	25	mandatory
CWATSEALLF-	STD	LUBRICANT food grade, tube	1	mandatory
CWATSEALTT9	STD	TAPE (Teflon) 19mmx15m, 0.2mm thick, roll	3	mandatory
CWATTOOLH23	STD	HOOK SPANNER, 2"-3", for Guillemin coupling	2	mandatory
PTOOWRENS0076	STD	OPEN-SOCKET WRENCH 6x6 point 90°, 7mm, metric, 75.7	1	mandatory

MODULE, ADDITIONAL HOSES + couplings, 2"
