CONNECTION STRIP Nylbloc type, 4mm², strip of 12 pcs
STD
PELECONNS04
Valid Article
Account code:
61120
HS Code:
853690
Last Updated on:
07/11/2024, 20:43:23
Former
Code(s):
PELECONNB04
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

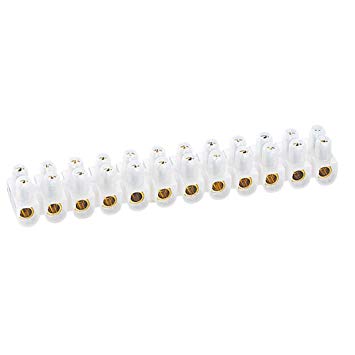

CONNECTION STRIP Nylbloc type, 4mm², strip of 12 pcs
Form
Plastic terminal strip with slots, metal sleeves and embedded screws, type Nylbloc type. Strip or bar with at least 12 connections of diameter 4 mm². Can be cut to length as required. Brand not relevant. Per bar.
Fit
The openings have a diameter of 4 mm². Therefore it is only suitable to make connections with smaller copper cables, for example cables of 2 mm².
Function
Used to make secured connections between cables or create secure cable endings. The strip can be cut into smaller pieces. Range -25 °C to +55 °C, max. 250 volts, max. 25 Amps.
At minimum a connecting bar must be used to connect cables, and never just tape.
Local purchase is possible, quality permitting.
