CONNECTION STRIP Nylbloc type, 6mm², strip of 12 pcs
STD
PELECONNS06
Valid Article
Account code:
61120
HS Code:
853690
Last Updated on:
21/11/2024, 22:38:01
Former
Code(s):
PELECONNB06
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

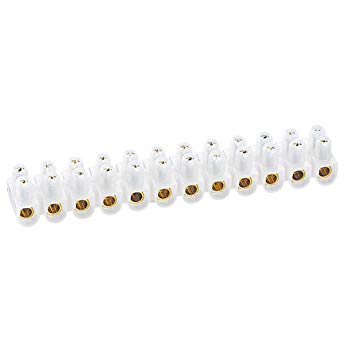

CONNECTION STRIP Nylbloc type, 6mm², strip of 12 pcs
Form
Plastic terminal strip with slots, metal sleeves and embedded screws, type Nylbloc type. Strip or bar with at least 12 connections of diameter 6 mm². Can be cut to length as required. Brand not relevant. Per bar.
Fit
The openings have a diameter of 6 mm². Therefore it is only suitable to make connections with smaller copper cables.
Function
Used to make secured connections between cables or create secure cable endings. The strip can be cut into smaller pieces. Range -25 °C to +55 °C, max. 250 volts, max. 25 Amps.
At minimum a connecting bar must be used to connect cables, and never just tape.
Local purchase is possible, quality permitting.
