STAGGERED START TIMER, 16A/30mA, 4 lines, adj. 1-30s

https://unicat.msf.org/cat/product/16816
NST PELECOMMTT2L4

Valid Article

Former Code(s): PELETEMP01-
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://unicat.msf.org/web/image/product.template/550703/image_1920?unique=43b46fb

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

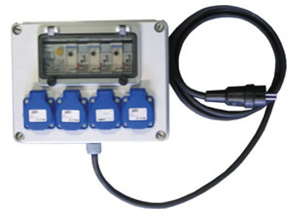

TIMER, STAGGERED START

Definition

Device enabling staggered start-up of 4 different power supply lines.

Enables operation of 4 x 3 electrical appliances (e.g. 4 x 3 refrigerators/ freezers) from a small generator whose power is less than the total start-up power of the 12 appliances.

Specifications

  • Polyamide waterproof case (IP54 IK08 rating) with access window to circuit breaker and time relays
  • Power cable HO7RNF 3G2.5, 2 m long + CEE plug, 2 pins and earth, 16 A
  • Outputs: 4 CEE sockets, PC, 2 pins and earth, 16 A
  • Protection: residual current circuit breaker, 1 pole plus neutral, 16 A, 30 mA
  • 3 time relays, adjustable from 1 to 30 seconds, preset in increments of 10 seconds
  • Ready to use

Instructions for use

To be mounted on a wall, protected from rain.

Do not connect more than 3 refrigerators/freezers per line.

This device does not replace the use of a voltage limiter or regulator/stabilizer.
