VOLTAGE LIMITER, for 220/230 V

Definition

Electrical protection device which interrupts the power supply when the voltage exceeds or falls below its tolerance range.

KSU: has to order the product of Sollatek for this code, https://www.sollatek.com/products/avs16/.

Specifications

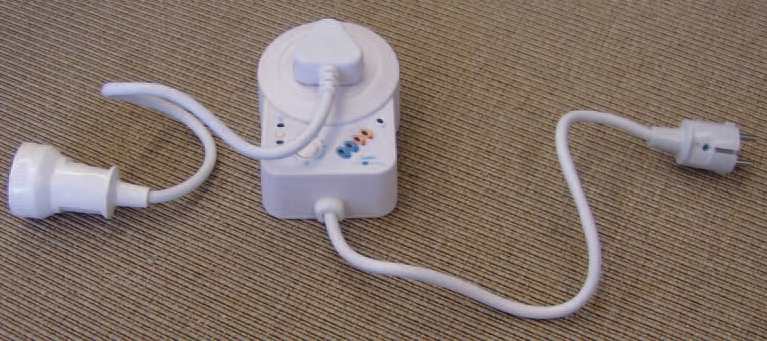

  • Plastic case with indicator lights, socket and cable fitted with plug
  • Nominal voltage: 220 - 230 V
  • Frequency: 50 and 60 Hz
  • Voltage limits:
    • cut-off above 260 V
    • reset under 255 V
    • cut-off under 185 V
    • reset above 190 V
  • Power: 3600 VA
  • Built-in reconnect timer, adjustable from 1.5 to 5 minutes
  • Dimensions: 12 x 18 x 7 cm

Instructions for use

A voltage limiter should be installed on all electrical equipment which is powered directly from the grid (except for lamps).

It is not necessary for devices powered from an inverter.

This device has no internal circuit breaker. It must therefore always be connected to a circuit protected by a 16 A circuit breaker.

If the input voltage is too low or fluctuates too much, it is better to install a voltage regulator/stabilizer (see "Related Article" below).
