1. All Products
  2. WELDING MACHINE inverter type, 160A, 230V
Public Pricelist

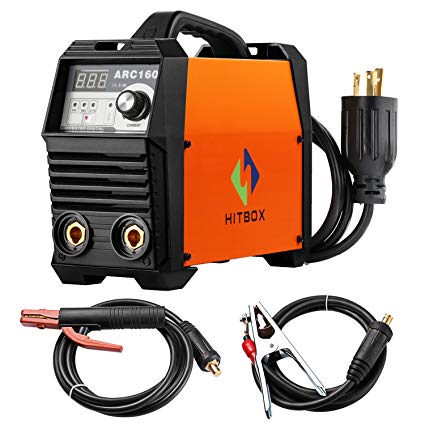

WELDING MACHINE inverter type, 160A, 230V

https://unicat.msf.org/cat/product/18180
STD PTOOWELDEI162

Valid Article

Former Code(s): PTOOWELD1-- PTOOZBD0145 PTOOWELDEI16X PTOOZFR0188
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

WELDING STATION

Definition

Electric device used for arc welding.

The temperature generated by the electric arc melts the metal of the electrode, which fuses with the molten metal of the pieces being welded.

Specifications

  • Power supply: 230/400V, ± 4500 W
  • Electrode diameter: 1.5 - 4 mm
  • Forced ventilation
  • Supplied with protective mask

Instructions for use

Only to be used by experienced staff.

Do not forget to order spare lenses for the protective mask (see related articles below).

How to choose electrodes

Thickness

Diameter

Current

0.6 - 1 mm

1.6 mm

30 - 50 A

1.0 - 2 mm

2.0 mm

40 - 80 A

1.5 - 3 mm

2.5 mm

40 - 100 A

2.0 - 5 mm

3.2 mm

90 - 140 A

4.0 - 8 mm

4.0 mm

130 - 180 A

Some restricted information has been hidden. Sign in to see this information
