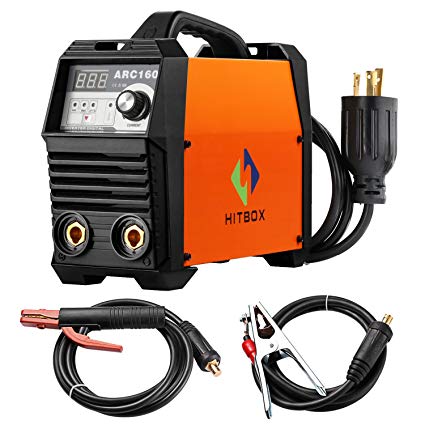

WELDING MACHINE inverter type, 230/400V

NST PTOOWELDE00QM

Valid Article

Former Code(s): PTOOWELD2-- PTOO2--
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



WELDING STATION

Definition

Electric device used for arc welding.

The temperature generated by the electric arc melts the metal of the electrode, which fuses with the molten metal of the pieces being welded.

Specifications

  • Power supply: 230/400V, ± 4500 W
  • Electrode diameter: 1.5 - 4 mm
  • Forced ventilation
  • Supplied with protective mask

Instructions for use

Only to be used by experienced staff.

Do not forget to order spare lenses for the protective mask (see related articles below).

How to choose electrodes

Thickness

Diameter

Current

0.6 - 1 mm

1.6 mm

30 - 50 A

1.0 - 2 mm

2.0 mm

40 - 80 A

1.5 - 3 mm

2.5 mm

40 - 100 A

2.0 - 5 mm

3.2 mm

90 - 140 A

4.0 - 8 mm

4.0 mm

130 - 180 A

Some restricted information has been hidden. Sign in to see this information
