TUBE, ENDOTRACHEAL, s.u. + CONN., balloon, Ø 7 mm

https://unicat.msf.org/cat/product/18421
STD SCTDTUED70B

Valid Article

Former Code(s): -X
The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
R01030201 - Endotracheal tubes, cuffed, not reinforced
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
CT3+
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

BASIC ENDOTRACHEAL TUBE, cuffed

Definition

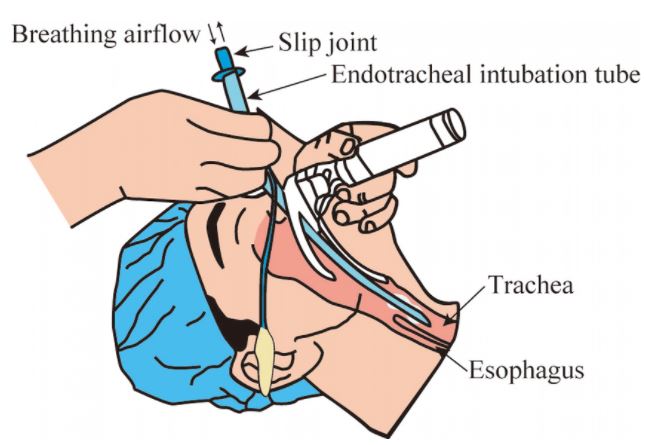

The endotracheal tube is a tube that is placed in the trachea through the mouth or nose and between the vocal cords. It serves to provide oxygen and inhaled gases to the lungs and protects the lungs from contamination, such as gastric contents or blood. It secures the airway and permits manual or mechanical ventilation in anaesthesia or resuscitation procedures.

Synonym

tracheal tube, Magill's tube

Specifications

Types of endotracheal tubes according to the specifications of the cuff

A cuff is an inflatable balloon at the distal end of the ETT. The inflated cuff produces a seal against the tracheal wall; this prevents gastric contents from entering the trachea and facilitates the execution of positive pressure ventilation.

The cuff inflates by attaching an appropriate size syringe to the pilot balloon. The syringe provides air under pressure and inflates both the pilot balloon and the cuff. Once the cuff inflates, the syringe needs to be removed, or the air in the cuff may redistribute back to the syringe and deflate the cuff. If the pilot balloon does not hold air, it must be assumed the cuff of the ETT has been damaged and is non-functional.

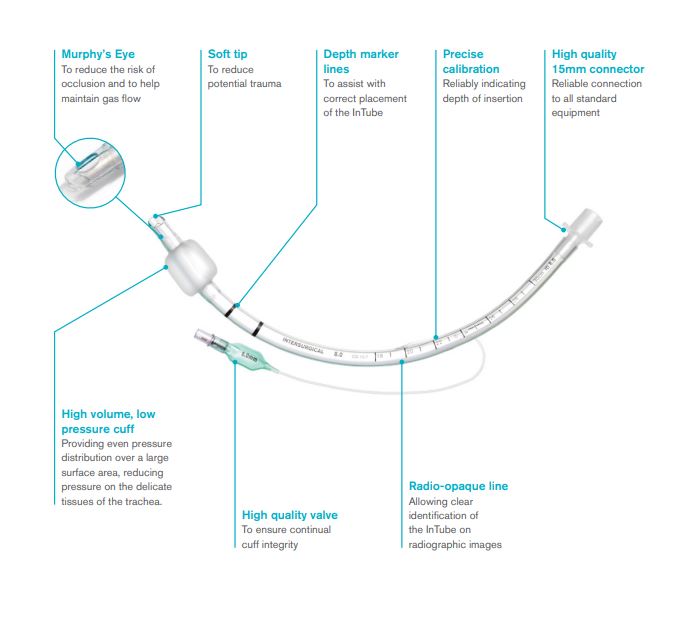

Cuffs are part of a cuff system consisting of the cuff itself plus a means of inflation, which includes a lumen in the wall of the tube, an external tube or inflating duct (portion that is visible outside the patient), a pilot balloon (indicating the inflation status of the cuff) and a non-return valve with Luer connection. Principal function of the cuff is to ensure a proper sealing and to center the ETT in the trachea.

  • No cuff: distal end with Murphy eye (optional)
  • Micro cuff: this tube has a short, ultra-thin PU cuff located away from the subglottic region; an important feature for children: it is the narrowest portion of the glottis and thus vulnerable to cuff-induced damage. The Murphy eye has been eliminated, which has allowed the cuff to be moved more distally on the ETT shaft. The cuff provides a seal with cuff pressure less than 10 cm H2O. This type of ET has a low tube exchange rate.
  • Regular cuff: high volume, low pressure (HVLP) cuff with Murphy eye

Quality standards

ISO 5361, 2023, edition 4, Anaesthetic and respiratory equipment - Tracheal tubes and connectors

Technical specifications

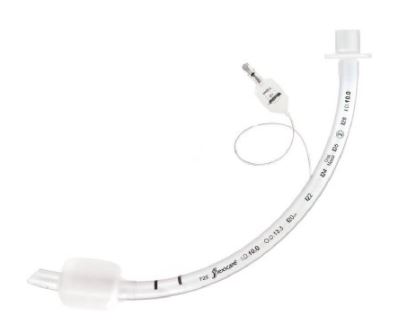

  • Tube:
    • preformed
    • transparent PVC
    • graduated every cm
    • open distal end with atraumatic 38º bevel, open on the left,
    • additional lateral hole type murphy eye (prevents the complete obstruction of the patient's airway, should the primary distal opening of the tube become occluded)
    • proximal end with standard connector, 15 mm Ø, for connecting to the ventilation system
    • radio-opaque line to confirm correct placement

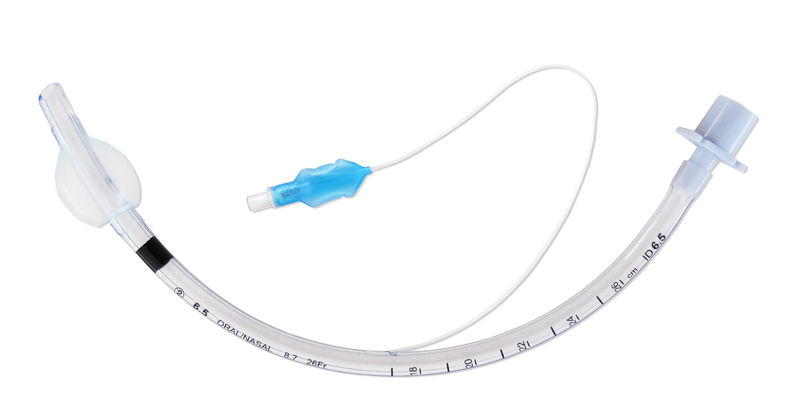

  • Endotracheal balloon:
    • PVC, 50 – 80 µm for the regular HVLP cuff.
    • located near the distal end of the cannula, above the murphy eye
    • must not impinge the opening of the Murphy eye; it must not herniate over the tube tip under normal conditions; and the cuff must inflate symmetrically around the ETT.
    • low pressure: conventional HVLP cuffs require about 20 cm H2O to seal the trachea
    • connected to an inflating duct:
      • included in the wall of the tube
      • ending in a non-return valve with Luer connection
      • with indicator balloon indicating inflation status of the balloon
  • Sterile, for single use
  • Comes in different sizes: endotracheal tubes size refers to its internal diameter in millimeters. The ETT will typically list both the inner diameter (ID) and outer diameter (OD) on the tube. The narrower the tube, the greater resistance to gas flow.

Packaging & Labelling

Unit sterile packaging in peel-open pack

(Cf Introduction: Packaging and labelling)

Instructions for use

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Placing of an endotracheal tube should be done by skilled staff.

It requires the use of accessories (laryngoscope, Magill forceps...), as well as specific equipment for manual ventilation and tracheal suction.

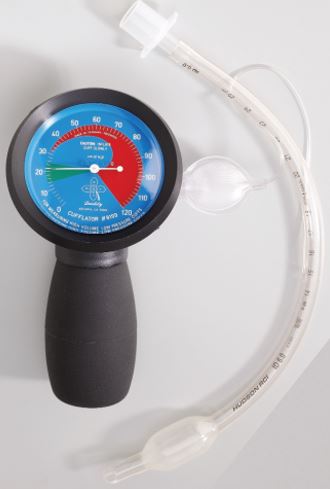

There is enough clinical evidence available to proof that 'feeling' the pilot balloon does not give an accurate estimation of cuff inflation, particularly cuff over-inflation which can lead to tracheal mucosal ischemia and subsequent scarring, especially after longer-term intubation. It is therefore important to avoid high cuff pressures and check inflation with a cuff manometer.

MSF requirements

Article should be replaced by endotracheal tube with no cuff or microcuff.
