  2. NEEDLE, INTRA-OSSEOUS, Luer-lock, s.u., 16G
Public Pricelist

NEEDLE, INTRA-OSSEOUS, Luer-lock, s.u., 16G

https://unicat.msf.org/cat/product/18681
STD SINSNEIO16-

Valid Article

Former Code(s): X SINSOCBZLB0008
The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
Article is intended to be used with children (<12 years) ONLY.
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
A019011 - Intraosseous infusion and vertebroplasty infusion needles and kits
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
PM
The order of this product needs to be justified and is only acceptable under certain conditions.
CT3+
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

INTRA-OSSEOUS NEEDLE

Definition

Sterile hollow needle which is introduced into the medullary cavity of a long bone in order to permit an infusion, transfusion or administration of medicines in infants or children younger than 6 years.

The intra-osseous infusion is a temporary resuscitation technique used in emergency situations where IV route is not feasible or efficient.

Specifications

Technical specifications

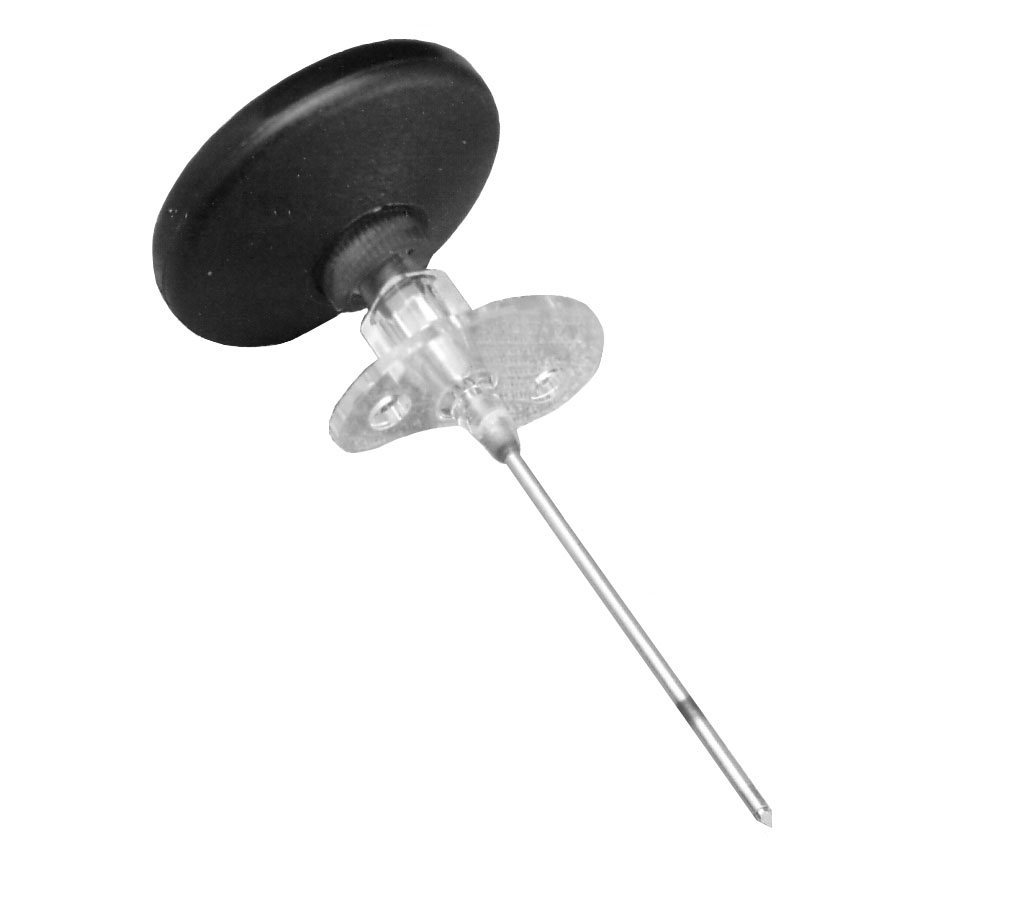

Dieckmann modified IO needle

  • NEEDLE
    • stainless steel
    • Triple bevelled end, 45º angled
    • Length: 3 cm
    • lateral openings, located near the distal end of the cannula
    • positioning mark allowing to determine the depth of insertion
    • circular hub with plastic wings and Luer lock connector
  • TROCAR
    • stainless steel
    • fitted with a plastic gripping handle (pommel)
  • Sterile, for single use

Comes in 2 sizes:

  • 16 G: for children > 10 kg
  • 18 G: for children < 10 kg

Packaging & Labelling

Unit sterile packaging in peel-open pack

Instructions for use
