ASSEMBLY T-coupling, 2", derivation, for faucet + locks
STD
CWATASSYT01
Valid Article
Account code:
61010
HS Code:
730799
Last Updated on:
11/12/2024, 19:47:48
Former
Code(s):
CWATATDER01-
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
ASSEMBLY T-coupling, 2", derivation, for faucet + locks
Form

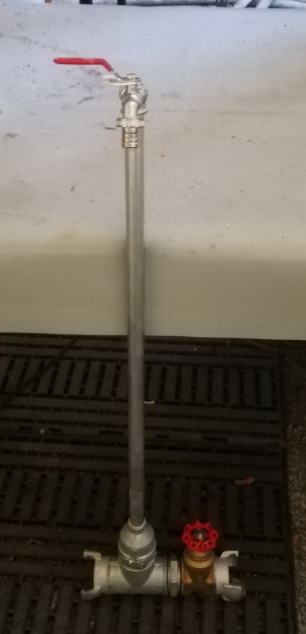

Assembly including a 2” galvanised T, with a 3/4" pipe + a ball valve faucet in the middle. And a 2" gate valve + two symmetric half-couplings with lock, on the extremities. Per assembled piece.
Fit
To be connected to a 2" half symmetric coupling on each extremities.
To be installed after the dosing pump.
Part of KWATMDOS01- MODULE, DOSING PUMP, 10 l/h - 3 m³/h (Dosatron)
Function
To control FRC (Free Residual Chlorine) after the dosing pump.
