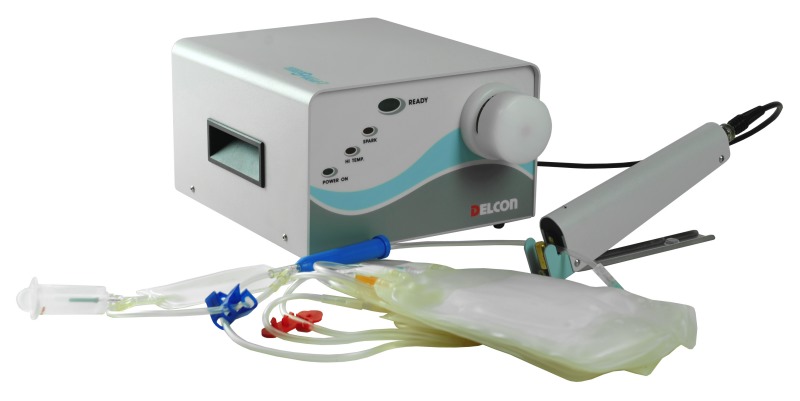

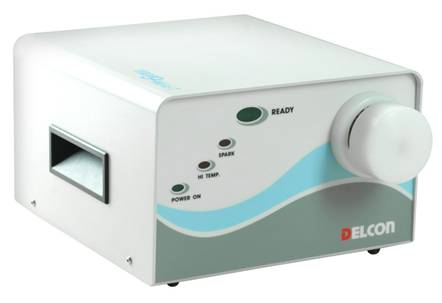

BLOOD BAG TUBE SEALER (Delcon HemoWeld T), 115-230V
STD
ELAESEAE1--
Valid Article
Account code:
60110
HS Code:
901890
Last Updated on:
21/11/2024, 23:13:54
Former
Code(s):
ELAEZBE0929 ELAEZFR0665
W02029010 - Bag sealers
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
BLOOD BAG TUBE SEALER
Definition
Bench tube sealer for blood bags designed for laboratory use.
Specifications
Quick sealing procedure in less than two seconds for blood bag tubing.
Some restricted information has been hidden. Sign in
to see this information
Quality standards
- IEC 60601-1, 2022, edition 1, Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
- IEC 60601-1-2, 2014, edition 4, +A1 2020 Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests
Components
- Power cord
- Operator and maintenance manual
Technical specifications
- Optical and acoustic signals for humidity or dirt presence on the electrodes
- Signal of sealing executed
- Secondary RF (Radio Frequency) output for optional sealing handgun
- Working frequency 40.680MHz
- For medical PVC tubes with outer diameter up to 5 mm
- Operating conditions
- temperature : 10-40°C
- relative humidity 10-90% without condensation
- Power supply: mains AC
- Voltage: 115 / 230 V, 50/60 Hz (voltage selector on back)
- Energy consumption: 420 VA
- Protection against electric shocks
- Class 1
Dimensions
- Dimensions net (DxHxW): 200 x 120 x 220 mm
- Dimensions with package: 450 x 410 x 400 mm
- Weight net and with package: 5.8 kg – 8.2 kg
Instructions for use
Read carefully the user manual
Some restricted information has been hidden. Sign in
to see this information
Precautions for Use
- Never try to pull or move the tube while sealing is in progress.
- The device must not be used on tubing still connected to a donor arm.
- Never touch the electrodes while sealing.
- Never place any metallic objects or any other object between the electrodes.
Some restricted information has been hidden. Sign in
to see this information
