DEFIBRILLATOR Manual (Beneheart D3) + Accessories, French

NST EEMDDEFE2--

Outdated Article

Former Code(s): EHOEZBE1224
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
Z12030502 - Manual defibrillators
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



DEFIBRILLATEUR Manuel (Beneheart D3)

This article is discontinued. Spare parts and service until 31 March 2034.

Definition

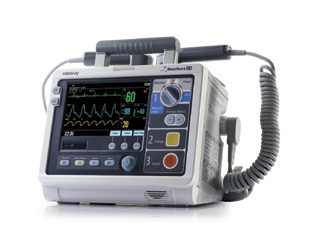

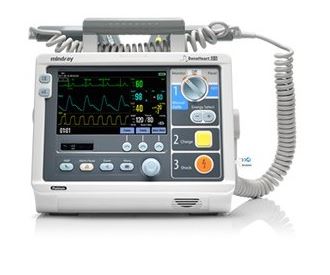

The Beneheart D3 is a portable defibrillator with four modes of operation: Monitor, Manual Defib, AED and Stimulus.

In Monitor mode, the unit is designed to monitor, display, view, record and print various physiological parameters and waveforms, including ECG, pulse oximetry (SpO2) and pulse rate (PR).

In AED mode, the unit automatically analyzes the patient's ECG rhythm and indicates whether or not a shockable rhythm is detected.

In Manual Defib Mode, the operator analyzes the patient's ECG. Defibrillation can be performed using paddles or MFE Pads. In Manual Defib Mode, you can also perform synchronised cardioversion.

The Stimulus Mode allows you to perform non-invasive transcutaneous pacing therapy.

Specifications

The equipment has the following main functions:

  • Manual Defib Mode
  • AED Mode
  • Pacer Mode
  • Monitor Mode
Some restricted information has been hidden. Sign in to see this information

Quality standards

EN 60601-2-4, 2011, +A1 2019 Medical electrical equipment - Part 2-4: Particular requirements for the basic safety and essential performance of cardiac defibrillators

Components

  • 1x) Li-ion battery
  • (1x) 50 mm recorder
  • (1x) External paddles Adu/ped
  • (1x) tubing + adulte cuff (24-35 cm) for NIBP
  • (1x) conductive gel
  • (2x) Thermal paper (50mm*20m), set of 3 rolls
  • (1x) MASIMO SpO2 extension cable
  • (1x) LNCS DCI adult sensor for MASIMO SpO2
  • (1x) 5 Leads-ECG trunk cable + wires, clip + electrodes

Technical specifications

  • Mains power supply:
    • mains voltage: 100 to 240 VAC (±10%)
    • current: 1.8 to 0.8 A
    • frequency: 50-60 Hz (±3 Hz)
  • DC power supply (with DC/AC adapter):
    • input voltage: 12 Vdc.
    • Power consumption: 190 W
  • Battery: 14.8 V / 3 Ah, intelligent lithium-ion battery, rechargeable and maintenance-free - a battery can be configured.
  • Charging time:
    • Less than 2 hours at 80% and less than 3 hours at 100% of with the appliance switched off
    • Less than 3.5 hours at 80% and less than 4.5 hours at 100% when the power is on
  • Defibrillation mode: manual defibrillation, synchronised cardioversion, ECD
  • Defibrillation trace: biphasic truncated exponential biphasic (ETB) trace, self-compensating according to the patient's impedance.
  • Defibrillation electrodes: set of external paddles supplied with pediatric paddles included, multifunction electrodes.
  • External defibrillation: 20 to 200 Ω.
  • Operating conditions:
    • temperature: 0° to 45°C.
    • humidity: 10-95% non-condensing
    • altitude: -381 m to +4575 m

Dimensions

  • (LxPxH): 288 × 203 × 275 mm
  • Weight of main unit: 4.7kg
  • Battery pack weight: 0.5kg
  • Weight external pallet set: 0,8kg

Transport Dangerous Goods

Lithium-Ion battery

To be Ordered Separately

MFE (multi-function electrode) pads must be ordered separately

Instructions for use

Read the manual carefully before use

Precautions for Use

The device must be used in hospital settings with critical care units by qualified medical personnel who are trained in the operation of the device and who have received training in first aid, cardiac intensive care or defibrillation.

Maintenance

The equipment must be cleaned regularly. If the equipment operates in a particularly polluted or dusty environment, the cleaning frequency must be increased.

Recommended cleaning agents :

  • mild soap (diluted)
  • ammonia (diluted)
  • bleach (sodium hypochlorite) (diluted)
  • Hydrogen peroxide (hydrogen peroxide, 3%)
  • Ethanol (70%)
  • MSF Ref : Surfanios

Observe the following rules when cleaning the equipment :

  • Switch off the unit, unplug the power cord and other cables, and remove the batteries.
  • Clean the screen with a clean, soft cloth dampened with glass cleaner.
  • Clean the outer surface of the machine with a clean soft cloth dampened with a window cleaner.
  • Clean the pallet holder with a clean, soft cloth dampened with glass cleaner.
  • Then wipe off the cleaning solution with a dry cloth if necessary.
  • Allow the equipment to dry in a cool, ventilated area.

Storage

Storage temperature: -30° to 70°C
Storage humidity: 10-95%, non-condensing
Storage altitude: -381 m to +4575 m

Classification EC Regulation N° 1272/2008

Type of protection against electric shock: Class I

Degree of protection against harmful penetration of liquids:

  • IPX4 in battery operation
  • IPX1 in mains operation

MSF requirements

Defibrillator for synchronized cardioversion for supraventicular tachycardia, unstable atrial fibrillation, ventricular tachycardia, for defbrillation of ventricular fibrillation and pulsesless ventricular tachycardia.

This device is NST and designed to be used primarily in manual mode, and thus requires skilled personnel to perform rhythm analysis, energy level determination and use of specific modes : pacing, cardioversion.

The device should not be confused with AED which are the primary STD device aimed for CPR in MSF

Some restricted information has been hidden. Sign in to see this information
Some restricted information has been hidden. Sign in to see this information

Description approved by referent of OCB (Jonathan Delchambre) in October 2023.
