(clinical chem. Piccolo) ELECTROLYTE PANEL, 400-0022
STD
ELAECCHT402
Valid Article
Account code:
60200
HS Code:
901890
Last Updated on:
20/11/2024, 23:48:03
Former
Code(s):
DDGTZFR0258
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
12
Shelf life = length of time a product can remain active and effective.
Short shelf life = shelf life = < 24 months
W01010403 - Multiple electrolytes only - clin. chem lab r.
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
(clinical chemistry Piccolo) ELECTROLYTE
Definition

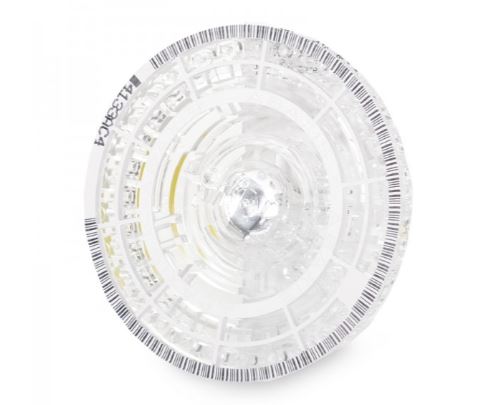

The Piccolo Electrolyte panel, used with the Piccolo Xpress chemistry analyser, is a single cartridge in the form of a disk and provides in vitro quantitative determinations of 4 different clinical chemistry parameters.
Specifications
Some restricted information has been hidden. Sign in
to see this information
Technical specifications
- Unit-use self-calibrating plastic reagent disc: Piccolo Electrolyte
- 1 disc is aimed to perform the tests for 1 patient
- Paramètres
- Cl-: Chloride
- K+: Potassium
- Na+: Sodium
- tCO2: Total Carbon Dioxide
- Sample volume: 100 µl
- Sample type: serum, plasma, whole blood (collected with lithium heparin only)
- Test duration: approx. 12 minutes
Packaging & Labelling
Box of 10 discs, ref. 400-0022 (one Piccolo Electrolyte disc, ref. 400-1022)
To be Ordered Separately
- Controls: low and high
- Sample transfert pipettes and tips
(see related items)
Instructions for use
Follow instructions on package insert and/or operating manual.
Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.
https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx
For offline access, contact your laboratory advisor.
Some restricted information has been hidden. Sign in
to see this information
Precautions for Use
- Do not reuse a disk even if operation was interrupted.
- Never use a disk that was dropped or cracked, as it may spread biohazardous material through the interior of the analyser, and it can affect the results.
- A disc not used within 20 minutes of opening the pouch should be discarded.
Storage
- Keep refrigerated between 2 and 8°C, Protect from sunlight
- Do not expose opened or unopened discs to direct sunlight or temperatures above 32°C
- When taking out of the refrigerator, condensation can appear. The disks can stay 48 hours at ambient temperature.
- Do not freeze
- Shelf life: min 12 months
- Guaranteed minimum remaining shelf life at delivery: 1/3 of total shelf life
Signal Word
Warning
| H302 | Harmful if swallowed |
| H315 | Causes skin irritation |
| H335 | May cause respiratory irritation |
| EUH401 | To avoid risks to human health and the environment, comply with the instructions for use. |
| P235 | Keep cool. |
| P273 | Avoid release to the environment |
| P308 + P313 | IF exposed or concerned: Get medical advice/attention. |
