CLINICAL CHEMISTRY ANALYSER (Piccolo Xpress), 230V, 50-60Hz

https://unicat.msf.org/cat/product/54007
STD ELAECCHE4--

Valid Article

Former Code(s): ELAEZFR0528
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
W02010690 - Various rapid test chemistry / immunochemistry instruments ("point of care" and/or emergency)
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
PF
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

Documents

CLINICAL CHEMISTRY ANALYSER (Piccolo)

Definition

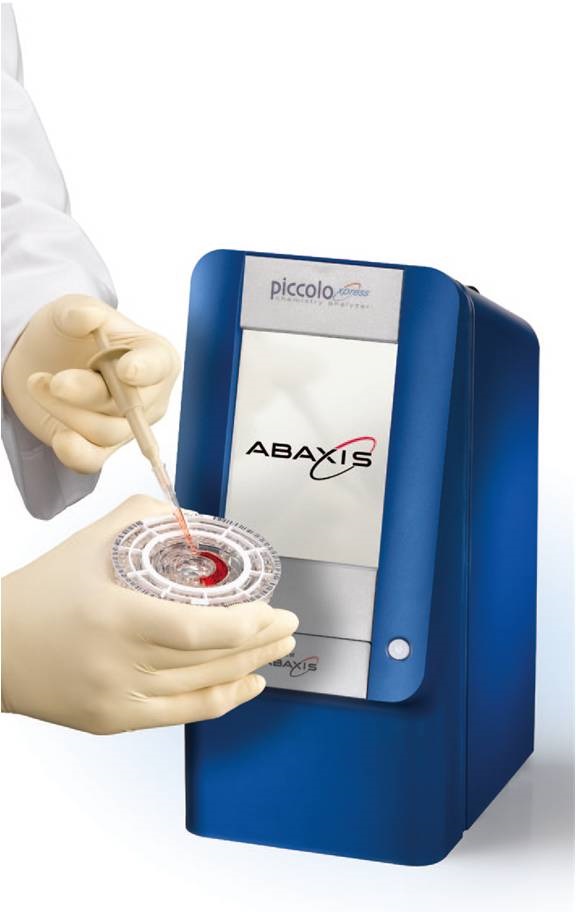

Piccolo Xpress is a portable clinical chemistry system that can perform real time analysis of whole blood, serum or plasma samples, in self contained, single-use reagent discs.

It is used for routine multi-chemistry and electrolyte tests. It has an integrated intelligent Quality Control (iQC) system.

Specifications

Point of care analyzer performing blood chemistry tests that range from liver, kidney and metabolic functions to lipids and electrolytes.

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Analyser hardware
    • 10 digit numeric colour touch screen
    • Built in thermal printer (external printer /LIS/EMR capable)
  • Analyser software comprised of two matched programmes
  • Sample size: 100 µl
  • Sample type: Lithium heparin whole blood, serum or plasma
    • Do not use EDTA as anticoagulant !
  • Test time: approx 12 minutes
  • Built-in intelligent Quality Control (iQC) system
  • Mode of operation: continous
  • Memory capacity: up to 5000 patient and quality control results
  • Power requirements:
    • 100 - 240 volts AC, 50 -60Hz
    • or 15 volts DC, 5.0A
  • Operating conditions
    • Temperature range: between 15 and 25ºC. Warning: By MSF experience, the instrument does not work above 25°C even if the manufacturer states 32°C!
    • Reaction temperature: 37ºC
    • Relative humidity: 8 to 80%, non condensing

Dimensions

  • Weight:
    • analyser: 5.1 kg
    • power adapter: 0.7 kg
  • Height x Width x Depth: 324 x 152 x 203 mm

Supplied with the Article

Accessory kit supplied:

  • Pipette fixed volume 100 µl (Minipette)
  • Disposable minipette tips (96 tips/rack)
  • Operators' manual ref. 1100-7009
  • Power cord ref. 981-0090
  • Power supply ref. 1988-0009
  • Spare filter
  • Adhesive paper roll ref. A1100-4410

To be Ordered Separately

  • Test panels/cartridges and control solutions
  • Carying case
  • Adhesive paper roll
  • Thermal paper

(see related items)

Instructions for use

Read the user manual.

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Precautions for Use

Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.
