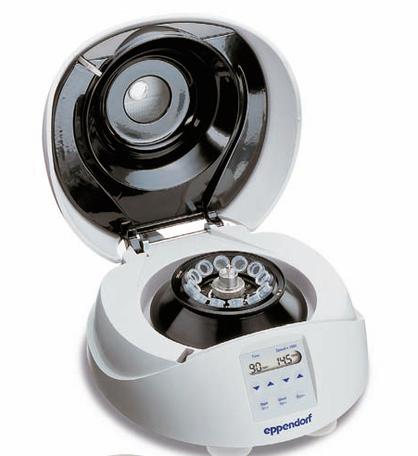

CENTRIFUGE (Minispin Plus), eppendorf tubes, 230V 50/60Hz

https://unicat.msf.org/cat/product/54021
STD ELAECEEE1--

Valid Article

Former Code(s): -X ELAEZFR0569 ELAECENE8-- ELAECEEE569
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
W02069003 - Centrifuges
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

CENTRIFUGE Eppendorf tube (Minispin Plus)

Definition

Rapid rotating apparatus, designed for separating substance mixtures with different densities, and in particular for processing and analysing biological/human samples, in microtubes.

Specifications

Centrifuge for microtubes between 0.2 ml to 2 ml with the rotor supplied with the centrifuge or PCR strips with another rotor.

Some restricted information has been hidden. Sign in to see this information

Quality standards

  • EN IEC 61010-2-020, 2017, edition 3, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-020: Particular requirements for laboratory centrifuges
  • EN 12547, 2014, Centrifuges - Common safety requirements

Material

Plastic body, steel base

Technical specifications

  • Component of the package:
    • 1 rotor: 45º fixed angle rotor (F-45-12-11) for 12 eppendorf micro test tubes
      • maximum rotational speed: 14,500 rpm
      • relative centrifugal force (RCF): 14,100 x g
      • acceleration time to maximum speed: 13 s
      • breaking time from maximum speed: 12 s
    • 1 stainless steel rotor lid
    • 1 rotor nut
    • 1 mains cable
    • 1 operating manual
  • Power supply: 230V/ 50-60Hz
  • Power requirements: 85 W
  • Current consumption: 0.6 A
  • Usage conditions:
    • Between 10 to 40°C
    • Relative humidity 10 - 75%, non-condensing

Dimensions

  • L x W x H: 225 x 240 x 120 mm
  • Weight, incl. rotor: 4.3 kg
  • Rotor F-45-12-11: 450 g

To be Ordered Separately

F-55-16-5-PCR rotor: fixed angle rotor for centrifuging 16 PCR tubes (0.2ml) or strips 0.2 ml PCR tubes [ELAECEEA102]

Instructions for use

Please consult the “Updated laboratory procedures, 2022” available online via the Laboratory working Group sharepoint page: Laboratory Procedures and Resources.

https://msfintl.sharepoint.com/sites/msfintlcommunities/LabWG/SitePages/Laboratory-Manual-page.aspx

For offline access, contact your laboratory advisor.

Some restricted information has been hidden. Sign in to see this information

Precautions for Use

Do not use centrifuge near sources of strong electromagnetic radiation

Secure all electrical devices in the laboratory‌ with a UPS double conversion (see related articles below). To define the best sizing of the UPS, contact your biomedical or energy referent.

Maintenance

Clean the centrifuge according to instructions in the maintenance section of the user manual.

Service life of rotor: 100 000 cycles (approx. 7 years).

Storage

  • Temperature between -5ºC and 45ºC
  • Relative humidity: 10 % - 75 %

MSF requirements

Basic model centrifuge. Essential in a reference laboratory.

In TB or HIV laboratories, it is used to perform molecular testing.

Some restricted information has been hidden. Sign in to see this information
