  2. AXILLARY CRUTCH, adult, adjustable length, 110-140cm
Public Pricelist

AXILLARY CRUTCH, adult, adjustable length, 110-140cm

https://unicat.msf.org/cat/product/54096
STD EPHYCRUA1A-

Valid Article

Former Code(s): -X EPHYZFR0029 EPHYZBE0026
Y12030603 - Crutches with under-axle support
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

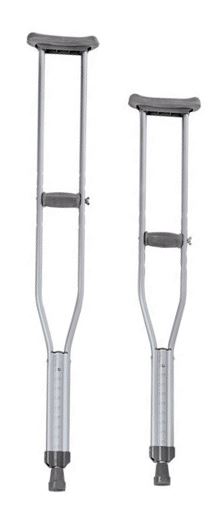

AXILLARY CRUTCH

Definition

A staff-like mobility aid used to assist a person with a disability to support their weight while walking.

The device has one leg, a padded hand support at the level of the user's wrist, and an under-arm (the armpit or axilla) padded platform.

Synonym

Specifications


Quality standards

ISO 24415-2, 2011, edition 1, (confirmed 2022) Tips for assistive products for walking - Requirements and test methods - Part 2: Durability of tips for crutches

Technical specifications

  • Identification of the size needed: measure the length between two following points:
    • 5 cm below the axilla to
    • the 5 cm anterior and 15 cm lateral to the foot in standing position
  • Height adjustable with butterfly screws
  • Made of aluminium
  • Rubber tips with metal inlay (for longer resistance)
  • If possible with ergonomic hand grip
  • Hand grip height adjustable (average sizes):
Age groupsizeof patientof crutch
Child/adolescentsmall130 - 150 cm90 - 120 cm
Adultmedium150 - 175 cm110 - 140 cm
Large adultlarge175 - 198 cm130 - 150 cm
  • Dense foam for hand grip and underarm support
  • Supplied per pair

Instructions for use

For people unable to put weight on a lower limb (elderly people, amputees …).

Take the morphology of the local population into account when thinking about the size of crutches to be ordered.

Check if the patient received adequate training for the use of axillary crutches, and also for the detection of any sign of compression of the axillary neurovascular bundle.

MSF requirements

Mobility aid used in all types of contexts.
