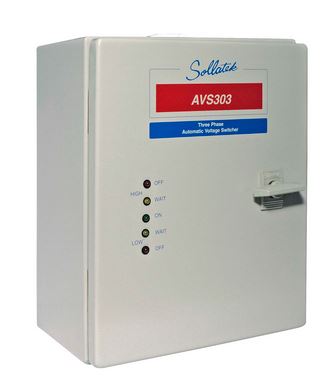

VOLTAGE LIMITER (Voltshield AVS303-60) 190-260V, 60A, 3phase

Form

The AVS303 is a 3 phase Automatic Voltage Switcher rated for 60 amps/phase. The AVS303 will switch off the equipment connected to it if the mains power goes outside preset acceptable limits and will re-connect automatically - when the mains power returns to normal. Re-connection takes place after a delay (‘the startup delay') to ensure stability of the mains. In addition, the start-up delay (adjustable from 10 secs to 10 mins) provides protection against power-back surges commonly experienced after resumption of power in a power cut situation. Surge and spike protection is also incorporated to ensure protection against these commonly occuring events.

  • max power: from 60 amps per phase
  • wait time: User adjustable from 10 seconds to 10 minutes
  • 3 phase
  • IP 55
  • under-voltage disconnect 190 V
  • over-voltage disconnect 260 V

Per piece.


Fit

Attach to a wall and connect with brass screw terminals.


Function

The AVS303 will switch off the equipment connected to it if the mains power goes outside preset acceptable limits and will re-connect automatically - when the mains power returns to normal.

Over & under voltage protection for :

  • whole buildings
  • freezers
  • 3 phase air conditioning
  • industrial refrigeration
  • industrial plants and machinery
